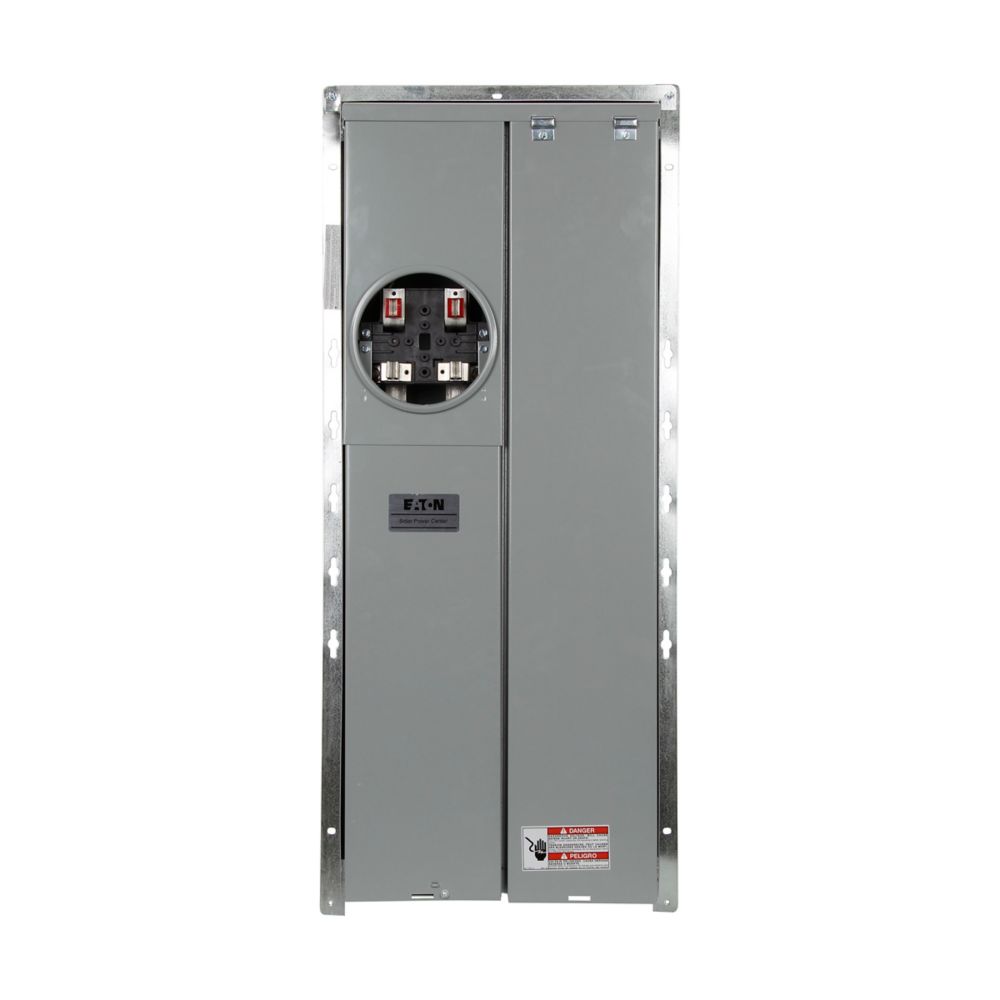

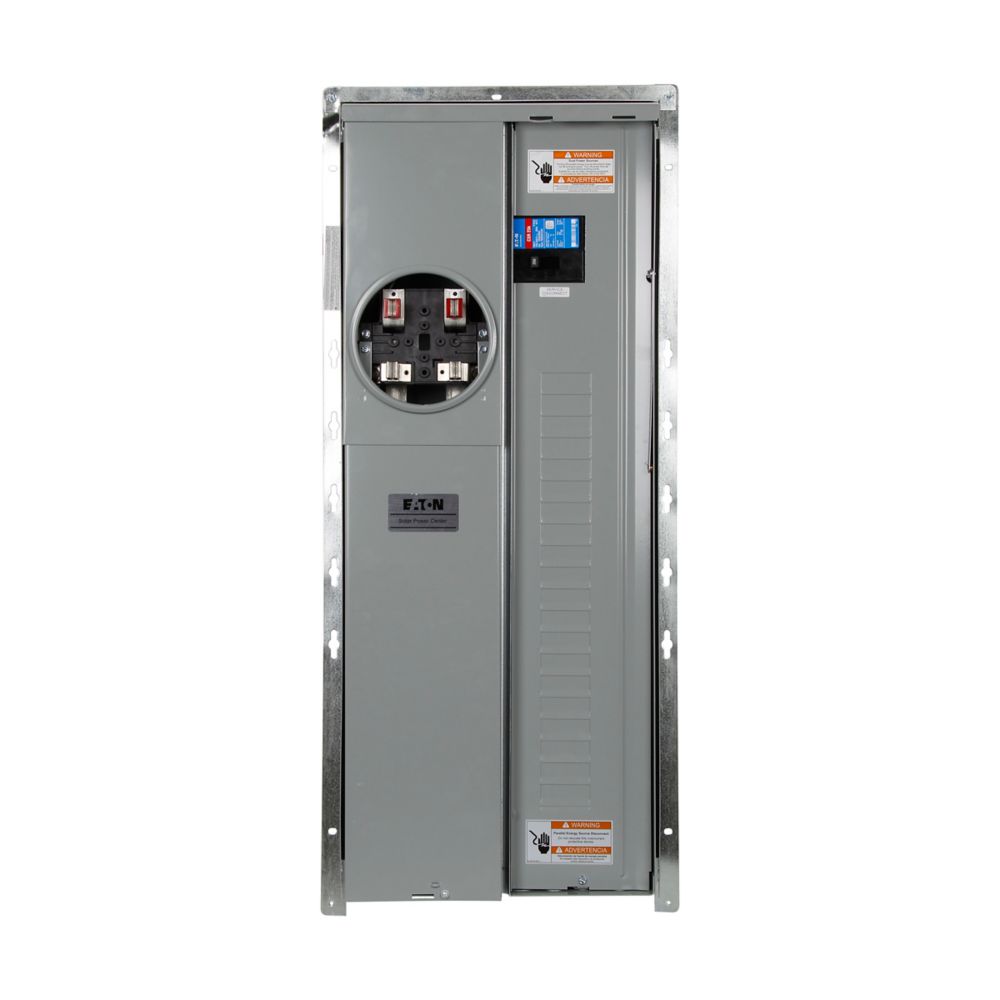

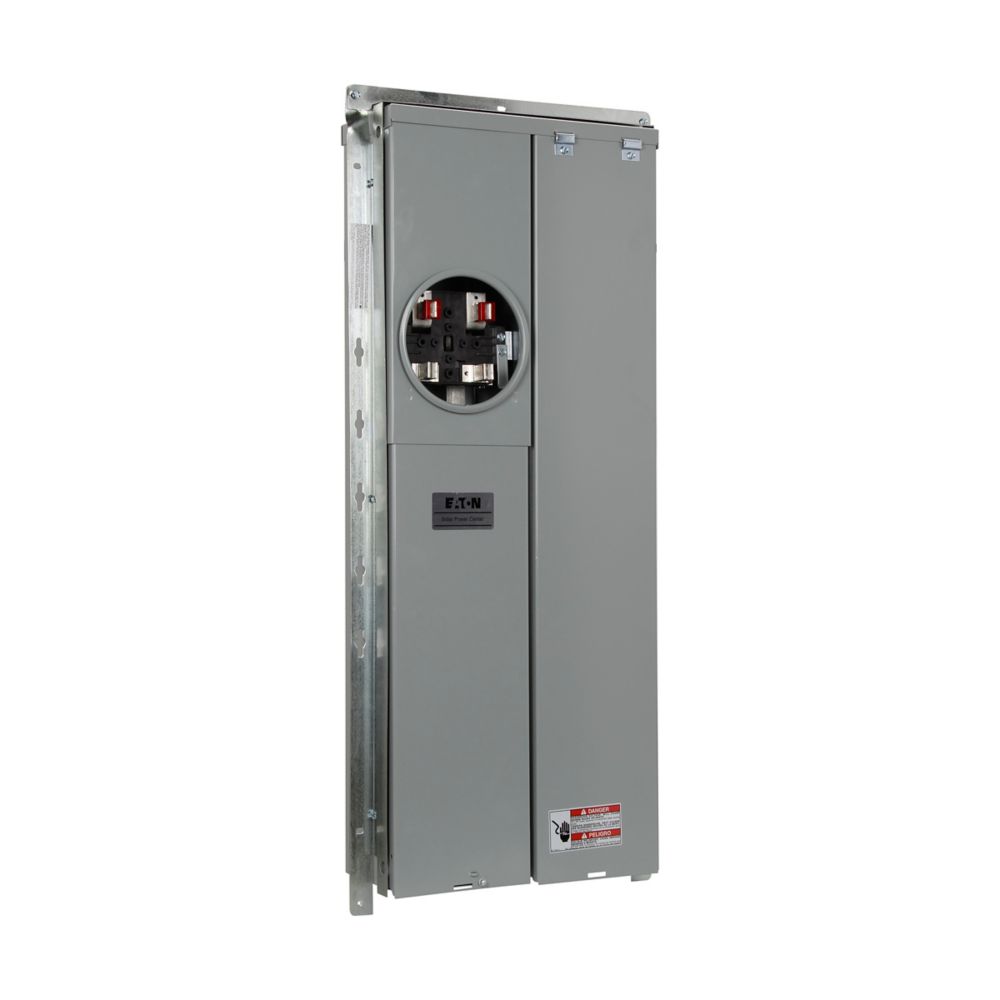

Eaton Solar-Ready Meter Main Combo Load Center, 200A, Flush Mount – MBE2040PV200BTF
SKUMBE2040PV200BTF
The Eaton MBE2040PV200BTF is a Type BR solar-ready meter main (Solar Power Center Meter Breaker) rated 200 A. Eaton lists a copper bus rated 225 A, a NEMA 3R galvanized steel enclosure, flush mounting, and side-by-side construction.
Couldn't load pickup availability
Need it anyway? Request a written quote. No payment is taken.
Delivery
Shipping weight 50.0 lb. Shipping, including freight for large items, is calculated at checkout before you pay.
Need help choosing or installing?
Get one hour of personalized help with equipment selection, system questions, commissioning, or troubleshooting. Purchase your session, then use the scheduling link provided after checkout to choose an appointment.
- Trusted since 1999
- Ships from US warehouses
- 4.8 stars · 681 Google reviews
Product Overview
The Eaton MBE2040PV200BTF is a Type BR solar-ready meter main (Solar Power Center Meter Breaker) rated 200 A. Eaton lists a copper bus rated 225 A, a NEMA 3R galvanized steel enclosure, flush mounting, and side-by-side construction.
Eaton lists 20 spaces / 40 circuits, a CSR main circuit breaker, 22 kAIC interrupt rating, top/bottom feed, and a maximum PV input of 70. The unit is listed for Type BR breakers and is EUSERC Approved / UL Listed.
Best For
- Flush-mount solar-ready meter mains: Where utility metering and a Type BR distribution section are combined in one outdoor NEMA 3R assembly.
- Projects that specify Eaton Type BR breakers: Branch circuits in the distribution section of this meter main.
Key Features & Specifications
| Specification | Details |
|---|---|
| Product type | Eaton type BR solar power center meter breaker (solar-ready) |
| Catalog number | MBE2040PV200BTF |
| Amperage rating | 200 A |
| Bus material / bus rating | Copper / 225 A |
| Spaces / circuits | 20 spaces / 40 circuits |
| Main circuit breaker | CSR |
| Enclosure | NEMA 3R, galvanized steel |
| Mounting | Flush |
| Feed type | Top/bottom |
| Interrupt rating | 22 kAIC |
| PV input (Eaton) | 70 max PV input |
| Voltage rating | 120/240 V |
| Phase | Single-phase |
| Number of sockets | 1 |
| Special features | Side by side construction |
| Used with | Type BR breakers |
| Certifications | UL Listed |
| Product compliance | EUSERC Approved |
| Source | Eaton Specification Sheet for this catalog number (retrieved Oct 8, 2026) |
What You May Also Need
Usually required
- Type BR branch breakers for the distribution section.
- Utility coordination for the meter socket and service.
- Conductors and PV interconnection equipment sized per the design and AHJ.
May be required
- Disconnects & Breakers: AC disconnects where the utility or AHJ requires a separate outdoor disconnect.
- Eaton hold-down and accessory kits when backfeeding or when the instructions require them.
Optional upgrades
- Enclosures, Electrical & Safety: Related electrical balance-of-system hardware.
Check current manufacturer documentation before combining components, especially batteries, inverters, communications equipment and system-control hardware.
Important Considerations
- Confirm utility approval (EUSERC and local utility lists) before ordering.
- Eaton Volume 15 lists this family as 70 A maximum total ampere rating of PV backfed mains ("70 max PV input" on the product sheet). Confirm how that limit applies to your interconnection design.
- Use only Type BR breakers in the distribution section.
- Professional installation required. Follow Eaton instructions, utility rules, and the NEC.
