Eaton Non-Fusible AC Disconnect, 60A, 240V – DG222URB
SKUDG222URB

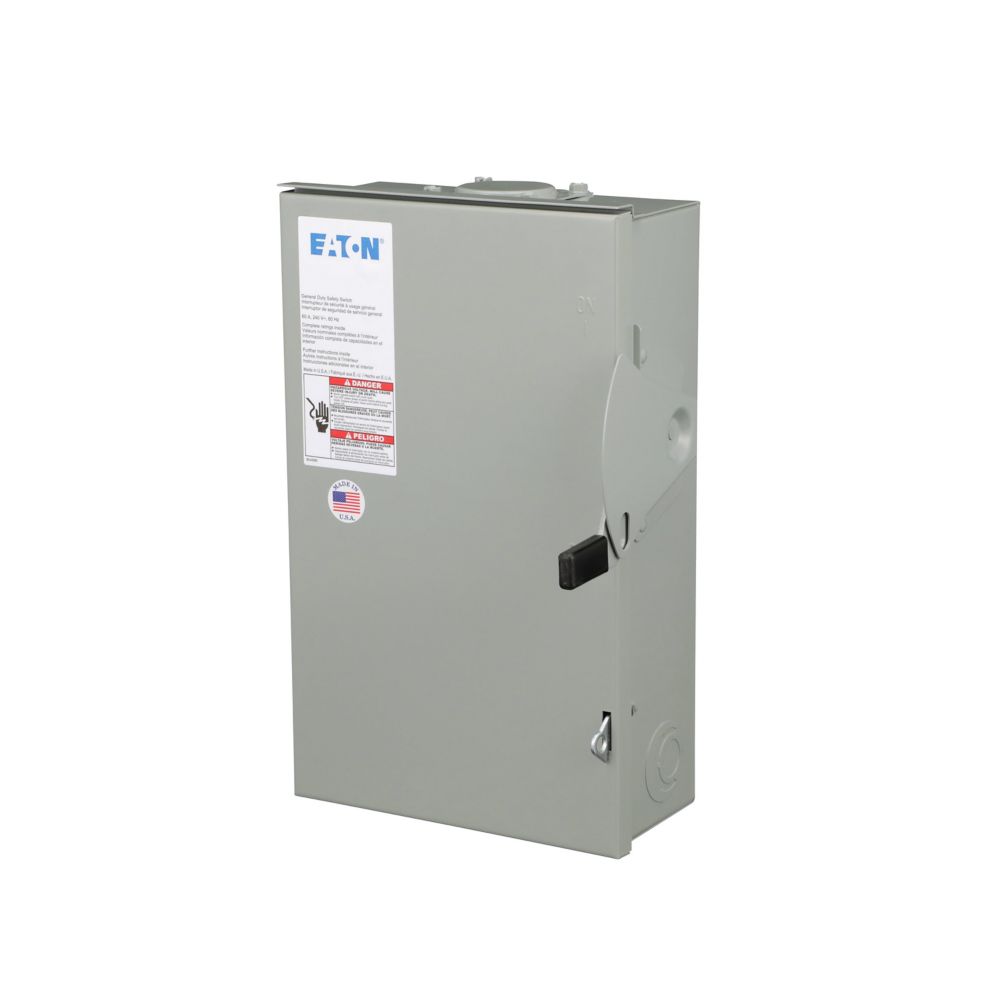

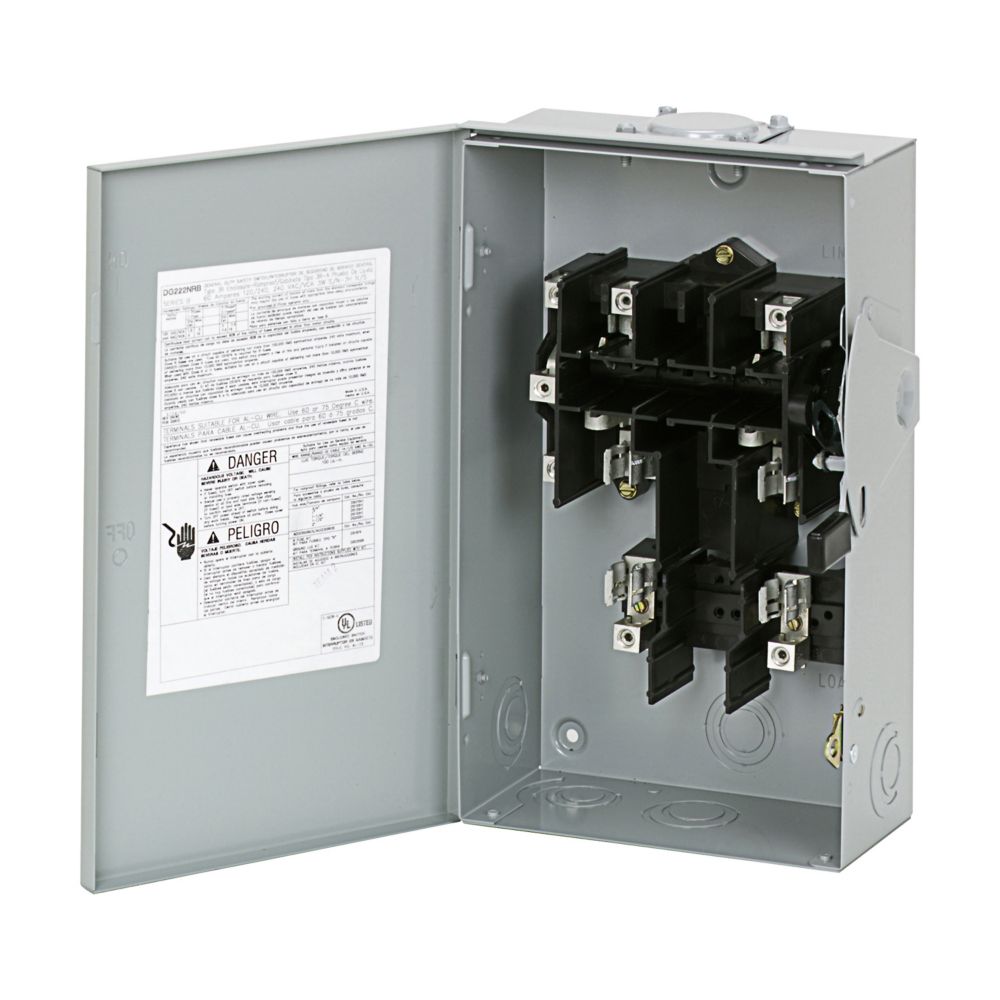

The Eaton DG222URB is a 60 A, 240 V general-duty non-fusible safety switch in a NEMA 3R painted galvanized steel enclosure.
Couldn't load pickup availability
Need it anyway? Request a written quote. No payment is taken.
Delivery
Shipping weight 11.0 lb. Shipping, including freight for large items, is calculated at checkout before you pay.
Need help choosing or installing?
Get one hour of personalized help with equipment selection, system questions, commissioning, or troubleshooting. Purchase your session, then use the scheduling link provided after checkout to choose an appointment.
- Trusted since 1999
- Ships from US warehouses
- 4.8 stars · 681 Google reviews
Product Overview
The Eaton DG222URB is a 60 A, 240 V general-duty non-fusible safety switch in a NEMA 3R painted galvanized steel enclosure.
Use it when you need a lockable outdoor disconnect for 60 A, 240 V loads and fuses are not required in the switch.
Best For
- Outdoor 60 A AC disconnect points: Where a lockable non-fusible switch is specified for equipment isolation.
- Unfused outdoor isolation: Equipment that already has upstream overcurrent protection.
Key Features & Specifications
| Specification | Details |
|---|---|
| Product type | Eaton general duty non-fusible safety switch |
| Catalog number | DG222URB |
| Amperage rating | 60 A |
| Voltage rating | 240 V |
| Number of poles | Two-pole |
| Number of wires | Two-wire |
| Fuse configuration | Non-fusible |
| Enclosure | NEMA 3R, painted galvanized steel |
| Compliances | NEC 230.62 (C) Compliant Barrier |
| Certifications | UL Listed |
| Source | Eaton Specification Sheet for this catalog number (retrieved Oct 8, 2026) |
What You May Also Need
Usually required
- Correctly sized conductors and overcurrent protection for the load (provide fuses for fusible models; provide upstream protection for non-fusible models).
- Lockout/tagout hardware as required by the job.
May be required
- Disconnects & Breakers: Matching Eaton Type BR breakers or related disconnects for the same project.
- Neutral kit when the application requires service-entrance use on a non-fusible switch (see Important Considerations).
Optional upgrades
- Enclosures, Electrical & Safety: Outdoor enclosures and related balance-of-system hardware.
Check current manufacturer documentation before combining components, especially batteries, inverters, communications equipment and system-control hardware.
Important Considerations
- WARNING! Switch is not approved for service entrance unless a neutral kit is installed.
- Provide overcurrent protection separately — this switch does not accept fuses.
- General-duty switches are for lighter-duty residential and light commercial use. Confirm suitability for the application against Eaton documentation.
- Professional installation required. Follow Eaton instructions and the NEC.
