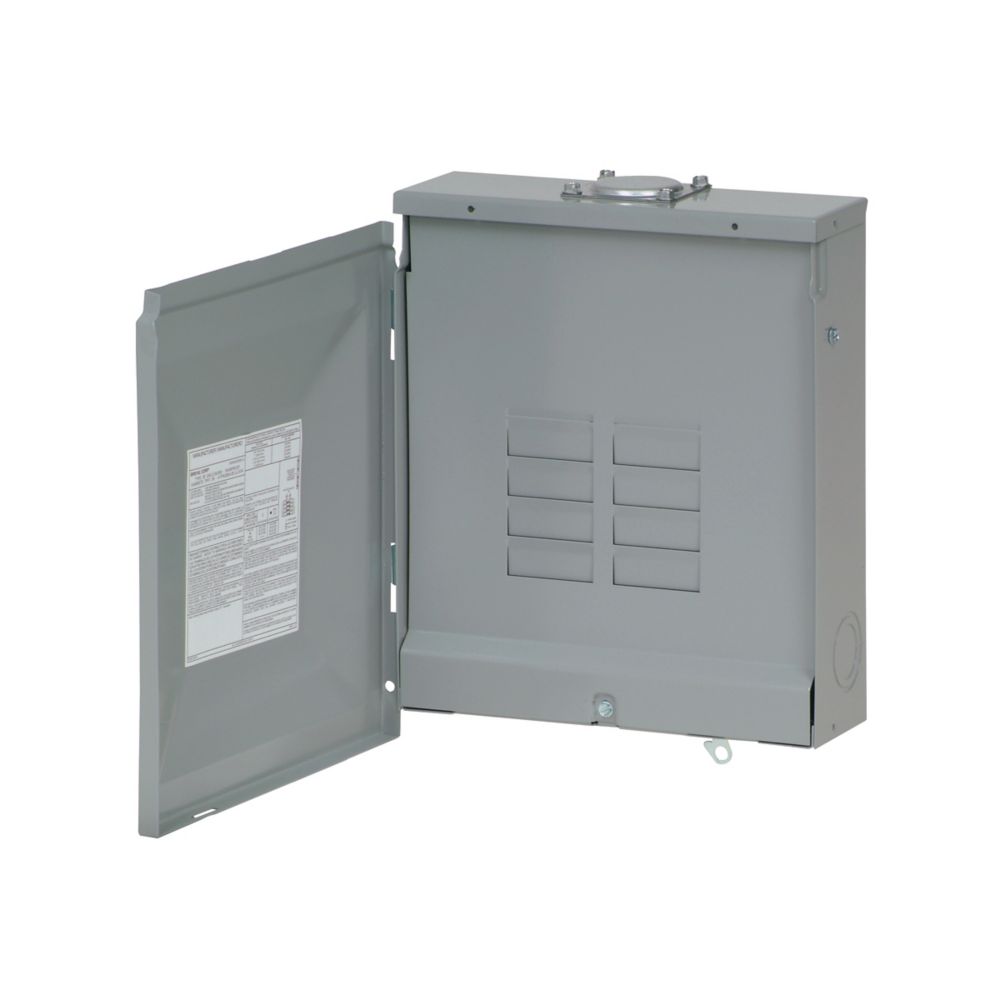

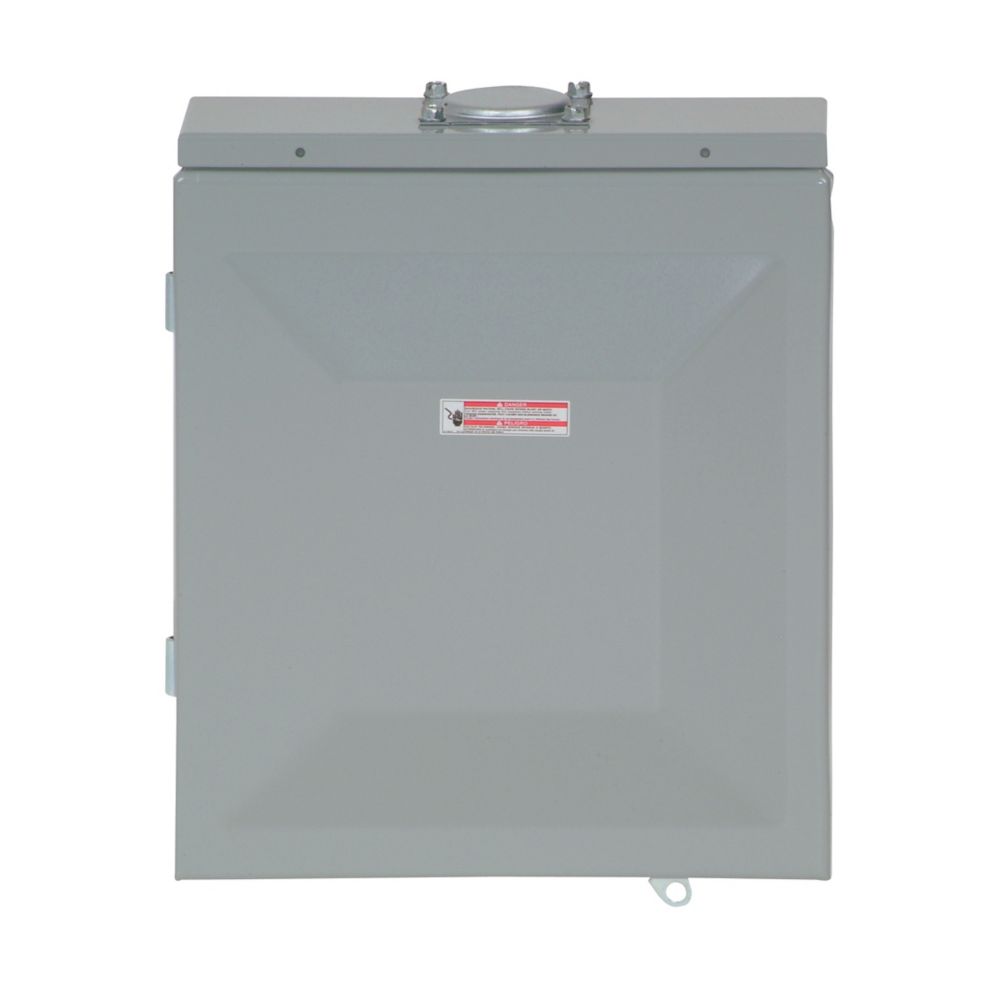

Eaton BR Single-Phase Load Center, 125A Main Lug, 8/16 Circuit, NEMA 3R – BR816L125RP
SKUBR816L125RP
The Eaton BR816L125RP is a Type BR main-lug-only (MLO) loadcenter rated 125 A. Main lug means there is no factory main breaker — the panel is fed through lugs and is typically protected by an upstream breaker or used as a subpanel.
Couldn't load pickup availability
Need it anyway? Request a written quote. No payment is taken.
Delivery
Shipping weight 13.7 lb. Shipping, including freight for large items, is calculated at checkout before you pay.
Need help choosing or installing?
Get one hour of personalized help with equipment selection, system questions, commissioning, or troubleshooting. Purchase your session, then use the scheduling link provided after checkout to choose an appointment.
- Trusted since 1999
- Ships from US warehouses
- 4.8 stars · 681 Google reviews
Product Overview
The Eaton BR816L125RP is a Type BR main-lug-only (MLO) loadcenter rated 125 A. Main lug means there is no factory main breaker — the panel is fed through lugs and is typically protected by an upstream breaker or used as a subpanel.
Eaton lists 8 spaces / 16 circuits, an aluminum bus, a metallic NEMA 3R enclosure, surface mounting, and a cover included. It is intended for Type BR breakers.
Best For
- Outdoor or rainproof subpanels: Where a compact 125 A main-lug Type BR panel in NEMA 3R is specified.
- Jobs that standardize on Eaton Type BR breakers: Matching branch breakers to this loadcenter family.
Key Features & Specifications
| Specification | Details |
|---|---|
| Product type | Eaton BR main lug loadcenter |
| Catalog number | BR816L125RP |
| Amperage rating | 125 A |
| Main type | Main lug (no factory main breaker) |
| Spaces / circuits | 8 spaces / 16 circuits |
| Bus material | Aluminum |
| Voltage rating | 120/240 V |
| Phase | Single-phase |
| Number of wires | Three-wire |
| Enclosure | NEMA 3R, metallic |
| Mounting | Surface |
| Cover | Cover included |
| Interrupt rating | 10 kAIC |
| Wire size | #14-1 AWG Cu/Al |
| Used with | Type BR breakers |
| Certifications | UL 67; UL 50 |
| Source | Eaton Specification Sheet for this catalog number (retrieved Oct 8, 2026) |
What You May Also Need
Usually required
- Type BR branch breakers sized for each circuit (for example BR220 / BR240 family).
- Upstream overcurrent protection and feeders sized for a 125 A main-lug panel.
May be required
- Neutral and ground kits as required by the installation instructions and local code.
- Disconnects & Breakers: Outdoor disconnects ahead of or beside the panel.
Optional upgrades
- Enclosures, Electrical & Safety: Related electrical balance-of-system hardware.
Check current manufacturer documentation before combining components, especially batteries, inverters, communications equipment and system-control hardware.
Important Considerations
- Main-lug panels do not include a factory main breaker. Provide protection upstream as required.
- NEMA 3R is rainproof — keep openings and knockouts sealed per Eaton instructions and the NEC.
- Use only breakers listed for Type BR loadcenters.
- Professional installation required.
