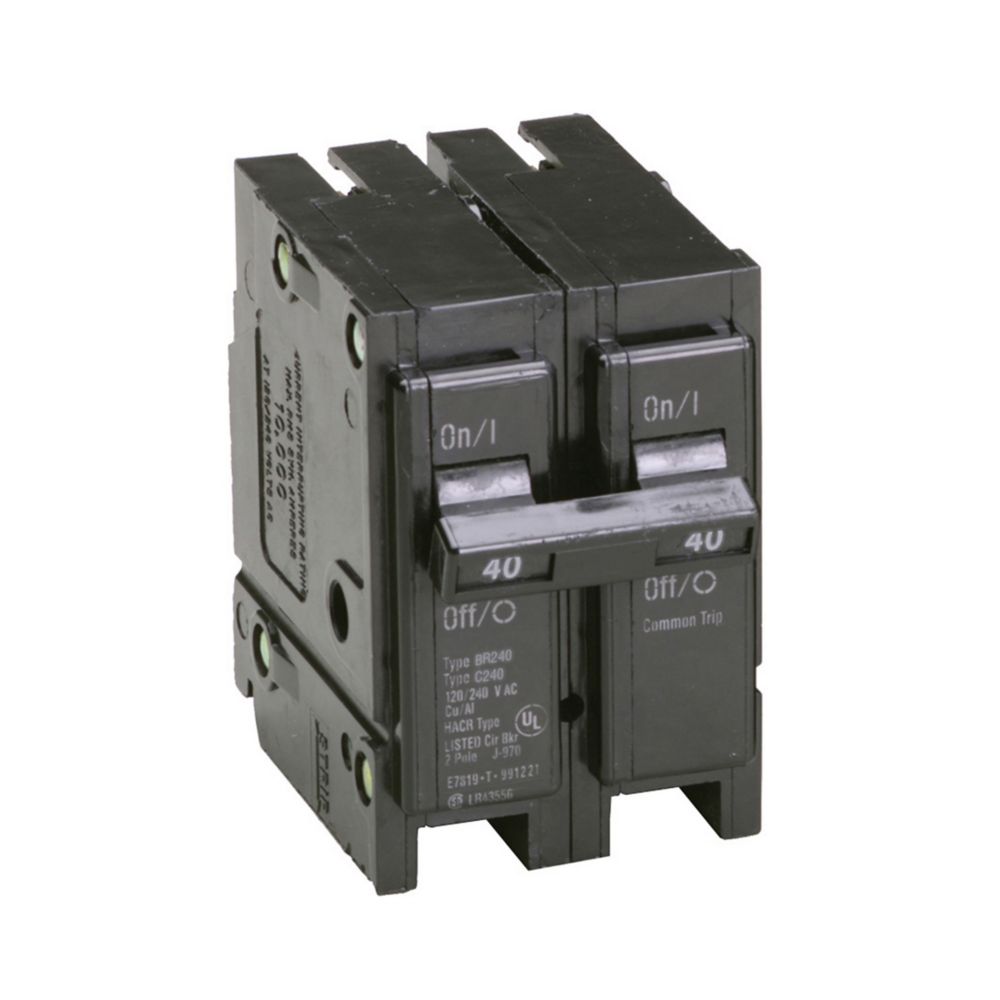

Eaton Type BR Circuit Breaker, 40A, 2-Pole, 120/240V – BR240
SKUBR240
The Eaton BR240 is a Type BR 1-inch plug-on thermal-magnetic circuit breaker. It is a two-pole, 40 A, 120/240 V breaker for Type BR loadcenters, with a common breaker trip and a 10 kAIC interrupt rating.
Couldn't load pickup availability
Need it anyway? Request a written quote. No payment is taken.
Delivery
Shipping weight 1.05 lb. Shipping, including freight for large items, is calculated at checkout before you pay.
Need help choosing or installing?
Get one hour of personalized help with equipment selection, system questions, commissioning, or troubleshooting. Purchase your session, then use the scheduling link provided after checkout to choose an appointment.
- Trusted since 1999
- Ships from US warehouses
- 4.8 stars · 681 Google reviews
Product Overview
The Eaton BR240 is a Type BR 1-inch plug-on thermal-magnetic circuit breaker. It is a two-pole, 40 A, 120/240 V breaker for Type BR loadcenters, with a common breaker trip and a 10 kAIC interrupt rating.
Type BR breakers plug onto the bus in Eaton Type BR panels. Match the ampere rating and wire size to the branch circuit design.
Best For
- Branch circuits in Eaton Type BR loadcenters: Where a 40 A two-pole breaker is specified.
- 120/240 V loads: Two-pole common-trip applications in BR panels.
Key Features & Specifications
| Specification | Details |
|---|---|
| Product type | Eaton BR thermal magnetic circuit breaker (Type BR 1-inch plug-on) |
| Catalog number | BR240 |
| Amperage rating | 40 A |
| Voltage rating | 120/240 V |
| Number of poles | Two-pole |
| Interrupt rating | 10 kAIC |
| Trip type | Common breaker trip |
| Mounting method | Plug-on |
| Wire size | #14-4 AWG Cu/Al |
| Used with | Type BR Loadcenters |
| Certifications | UL 489 |
| Compliances | Federal Specifications Classification W-C375 |
| Source | Eaton Specification Sheet for this catalog number (retrieved Oct 8, 2026) |
What You May Also Need
Usually required
- An Eaton Type BR loadcenter with an available two-pole space.
- Conductors sized for the breaker rating and the load.
May be required
- Load Centers & Panels: Eaton Type BR load centers and meter mains that accept Type BR breakers.
- Disconnects & Breakers: Related disconnects for outdoor isolation.
Optional upgrades
- Enclosures, Electrical & Safety: Related electrical balance-of-system hardware.
Check current manufacturer documentation before combining components, especially batteries, inverters, communications equipment and system-control hardware.
Important Considerations
- Use only in loadcenters listed for Type BR breakers.
- Confirm series ratings and hold-down requirements when the application requires them.
- Professional installation required. Follow Eaton instructions and the NEC.
