Eaton Fusible AC Disconnect, 60A, 240V – DG222NRB
SKUDG222NRB

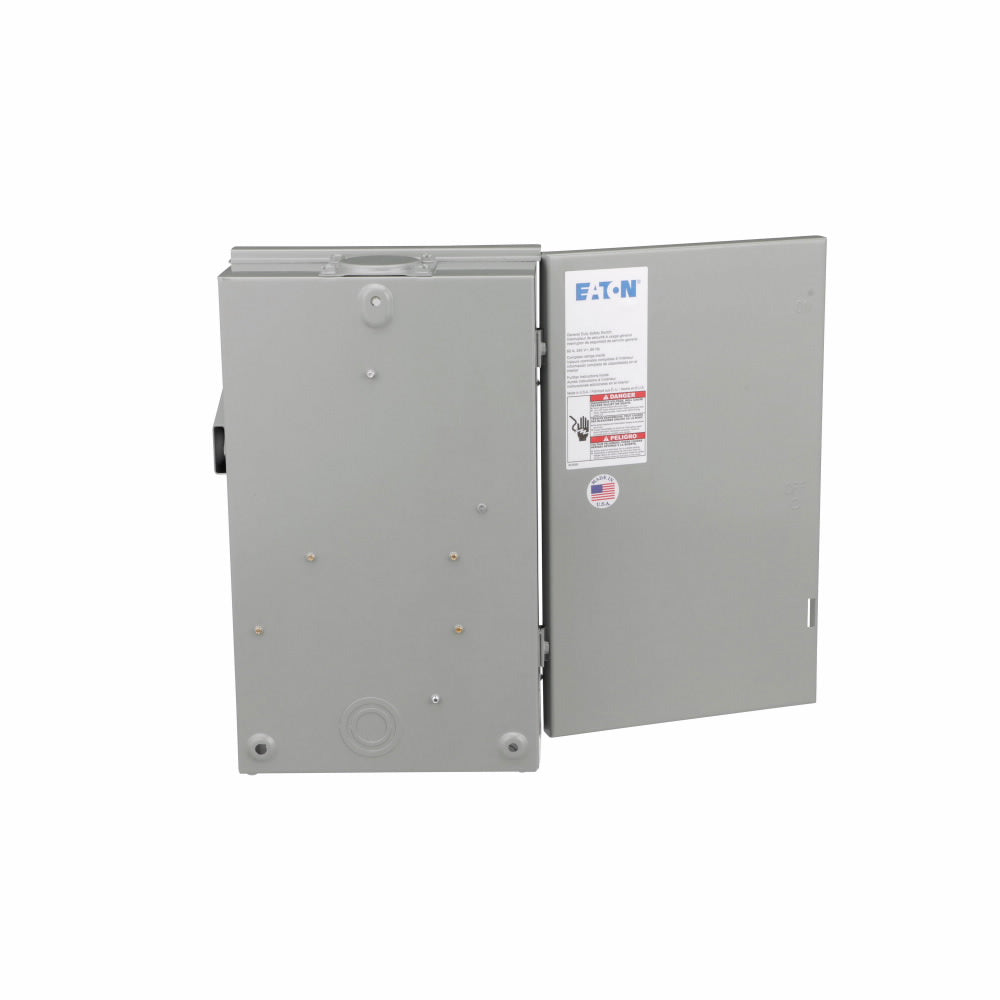

The Eaton DG222NRB is a 60 A, 240 V general-duty fusible cartridge-fuse safety switch in a NEMA 3R painted galvanized steel enclosure.
Couldn't load pickup availability
Need it anyway? Request a written quote. No payment is taken.
Delivery
Shipping weight 12.0 lb. Shipping, including freight for large items, is calculated at checkout before you pay.
Need help choosing or installing?
Get one hour of personalized help with equipment selection, system questions, commissioning, or troubleshooting. Purchase your session, then use the scheduling link provided after checkout to choose an appointment.
- Trusted since 1999
- Ships from US warehouses
- 4.8 stars · 681 Google reviews
Product Overview
The Eaton DG222NRB is a 60 A, 240 V general-duty fusible cartridge-fuse safety switch in a NEMA 3R painted galvanized steel enclosure.
Fusible with neutral means the switch accepts Class H cartridge fuses and includes a neutral — use it when overcurrent protection at the disconnect is required.
Best For
- Outdoor 60 A AC disconnect points: Where a lockable fusible cartridge-fuse switch is specified for equipment isolation.
- Fused outdoor disconnects: 60 A, 240 V points that need Class H cartridge fuses at the switch.
Key Features & Specifications
| Specification | Details |
|---|---|
| Product type | Eaton general duty cartridge fuse safety switch |
| Catalog number | DG222NRB |
| Amperage rating | 60 A |
| Voltage rating | 240 V |
| Number of poles | Two-pole |
| Number of wires | Three-wire |
| Fuse configuration | Fusible with neutral |
| Fuse class provision | Class H fuses |
| Enclosure | NEMA 3R, painted galvanized steel |
| Compliances | NEC 230.62 (C) Compliant Barrier |
| Certifications | UL Listed |
| Source | Eaton Specification Sheet for this catalog number (retrieved Oct 8, 2026) |
What You May Also Need
Usually required
- Correctly sized conductors and overcurrent protection for the load (provide fuses for fusible models; provide upstream protection for non-fusible models).
- Lockout/tagout hardware as required by the job.
May be required
- Disconnects & Breakers: Matching Eaton Type BR breakers or related disconnects for the same project.
Optional upgrades
- Enclosures, Electrical & Safety: Outdoor enclosures and related balance-of-system hardware.
Check current manufacturer documentation before combining components, especially batteries, inverters, communications equipment and system-control hardware.
Important Considerations
- Select fuse ampacity and type per the load and Eaton fuse tables. Eaton notes that maximum horsepower ratings apply only when dual-element fuses are used — this listing does not state a horsepower rating.
- Confirm wire sizing, grounding, and enclosure clearances with the installation instructions.
- General-duty switches are for lighter-duty residential and light commercial use. Confirm suitability for the application against Eaton documentation.
- Professional installation required. Follow Eaton instructions and the NEC.
