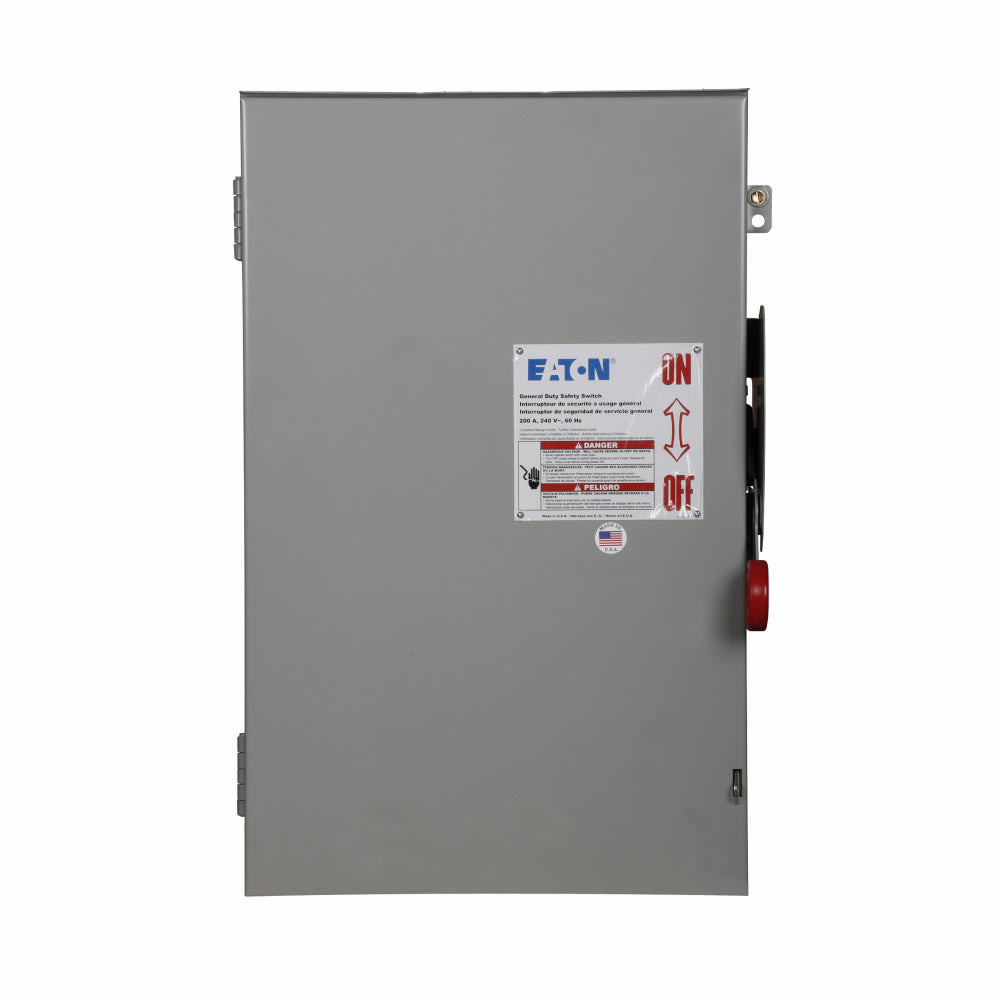

Eaton 200A Unfused AC Disconnect (DG224URK)

Product Overview

The Eaton DG224URK is a 200 A, 240 V general-duty non-fusible AC disconnect in a NEMA 3R outdoor enclosure. Use it as a lockable outdoor isolation point when your design already has overcurrent protection elsewhere and you need a 200 A two-pole switch.

Best For

• Outdoor 200 A, 240 V unfused disconnect applications
• Larger residential or light commercial general-duty disconnects

Key Features

• General-duty non-fusible, single-throw safety switch
• Two-pole, two-wire
• Painted galvanized steel NEMA 3R (rainproof) enclosure
• UL Listed; NEC 230.62(C) compliant barrier

Key Specifications

• Catalog number: DG224URK
• Amperage: 200 A
• Voltage: 240 V
• Configuration: 2-pole / 2-wire, non-fusible
• Enclosure: NEMA 3R, painted galvanized steel
• Approx. size / weight (Eaton): 25.5 in H × 16 in W × 11.25 in D; 55 lb

Compatibility / Important Considerations

• Eaton note: switch is not approved for service entrance unless a neutral kit is installed.
• Overcurrent protection must be provided separately.
• Professional installation required.
