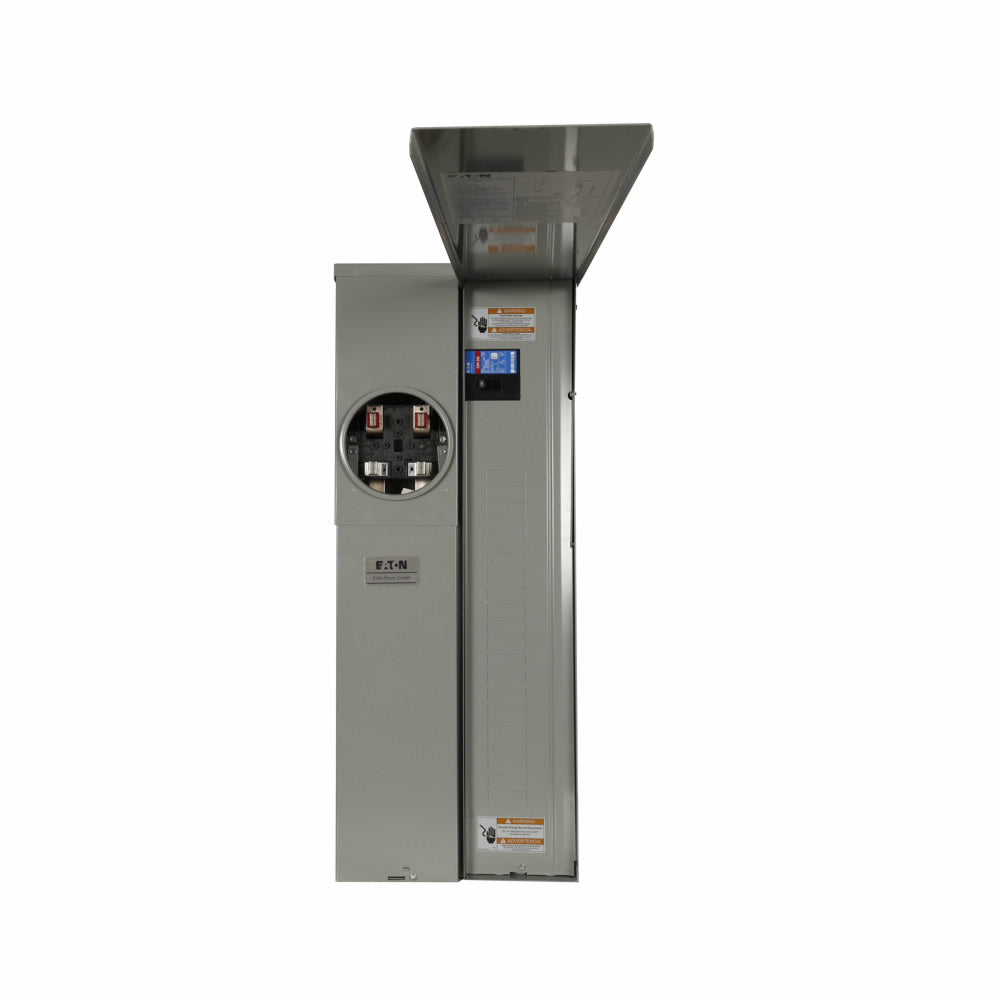

Eaton Solar-Ready Meter Main Combo Load Center, 200A, Surface Mount – MBE2040PV200BTS
SKUMBE2040PV200BTS
The Eaton MBE2040PV200BTS is a Type BR solar-ready meter main (Solar Power Center Meter Breaker) rated 200 A for surface mounting. Eaton lists a copper bus rated 225 A, a NEMA 3R galvanized steel enclosure, overhead/underground feed, side-by-side construction, and use with...
Couldn't load pickup availability
Need it anyway? Request a written quote. No payment is taken.
Delivery
Shipping weight 50.0 lb. Shipping, including freight for large items, is calculated at checkout before you pay.
Need help choosing or installing?
Get one hour of personalized help with equipment selection, system questions, commissioning, or troubleshooting. Purchase your session, then use the scheduling link provided after checkout to choose an appointment.
- Trusted since 1999
- Ships from US warehouses
- 4.8 stars · 681 Google reviews
Product Overview
The Eaton MBE2040PV200BTS is a Type BR solar-ready meter main (Solar Power Center Meter Breaker) rated 200 A for surface mounting. Eaton lists a copper bus rated 225 A, a NEMA 3R galvanized steel enclosure, overhead/underground feed, side-by-side construction, and use with Type BR breakers.
Eaton lists 20 spaces / 40 circuits, a CSR main, a maximum PV input of 70, and EUSERC Approved / UL Listed compliance.
Best For
- Surface-mount solar-ready meter mains: Where utility metering and a Type BR distribution section are combined outdoors.
- Projects that specify Eaton Type BR breakers: Branch circuits in the distribution section.
Key Features & Specifications
| Specification | Details |
|---|---|
| Product type | Eaton type BR solar power center meter breaker (solar-ready) |
| Catalog number | MBE2040PV200BTS |
| Amperage rating | 200 A |
| Bus material / bus rating | Copper / 225 A |
| Spaces / circuits | 20 spaces / 40 circuits |
| Main circuit breaker | CSR |
| Enclosure | NEMA 3R, galvanized steel |
| Mounting | Surface |
| Feed type | Top/bottom (overhead/underground) |
| PV input (Eaton) | 70 max PV |
| Voltage rating | 120/240 V |
| Phase | Single-phase |
| Number of sockets | 1 |
| Special features | Side by side construction |
| Used with | Type BR breakers |
| Certifications | UL Listed |
| Product compliance | EUSERC Approved |
| Source | Eaton Specification Sheet for this catalog number (retrieved Oct 8, 2026) |
What You May Also Need
Usually required
- Type BR branch breakers for the distribution section.
- Utility coordination for the meter socket and service.
- Conductors and PV interconnection equipment sized per the design and AHJ.
May be required
- Disconnects & Breakers: AC disconnects where the utility or AHJ requires a separate outdoor disconnect.
- Eaton hold-down and accessory kits when backfeeding or when the instructions require them.
Optional upgrades
- Enclosures, Electrical & Safety: Related electrical balance-of-system hardware.
Check current manufacturer documentation before combining components, especially batteries, inverters, communications equipment and system-control hardware.
Important Considerations
- Confirm utility approval (EUSERC and local utility lists) before ordering.
- Eaton Volume 15 lists this family as 70 A maximum total ampere rating of PV backfed mains ("70 max PV" on the product sheet). Confirm how that limit applies to your interconnection design.
- Use only Type BR breakers in the distribution section.
- Professional installation required.
