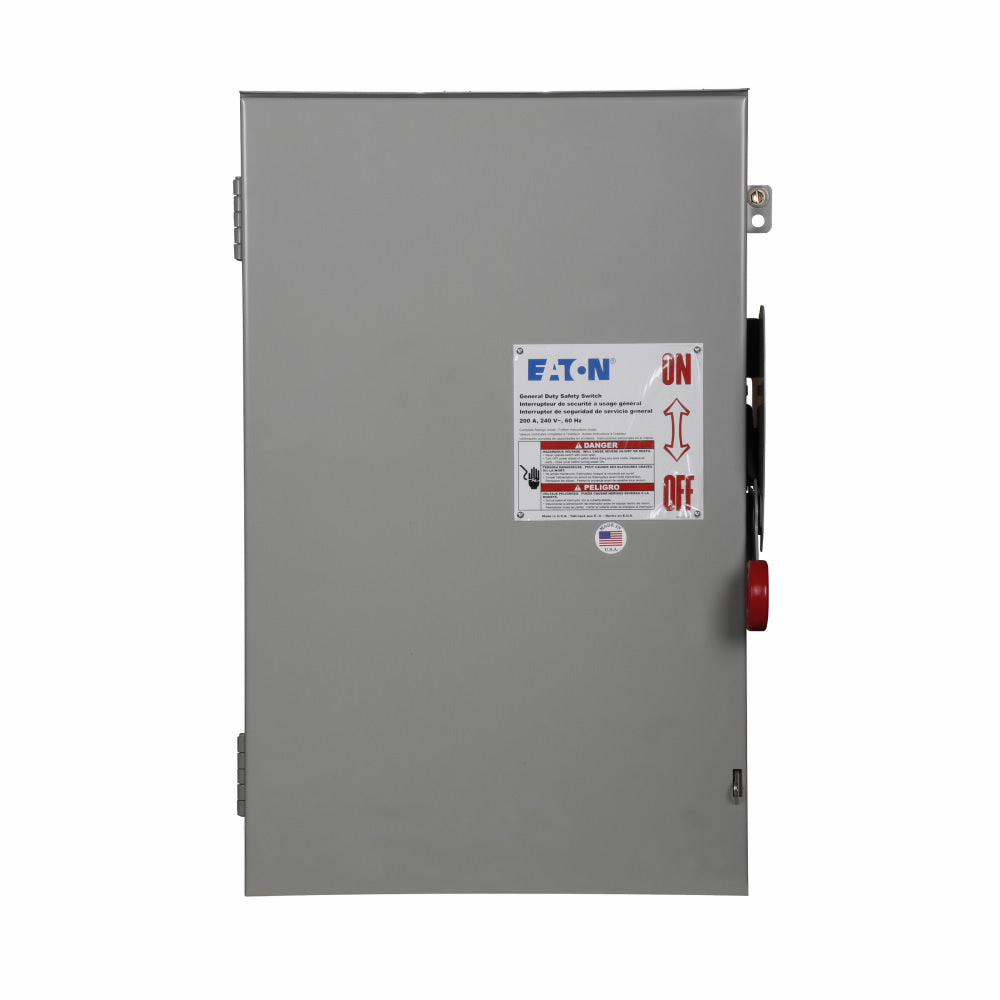

Eaton 200A Fused AC Disconnect (DG224NRK)

Product Overview

The Eaton DG224NRK is a 200 A, 240 V general-duty fusible AC disconnect with neutral in a NEMA 3R outdoor enclosure. It combines a lockable disconnect and Class H cartridge-fuse holders when you need overcurrent protection at the switch.

Best For

• Outdoor 200 A, 240 V disconnects that require fuses at the switch
• General-duty residential / light commercial fused isolation

Key Features

• General-duty cartridge-fuse safety switch
• Fusible with neutral; Class H fuse provision
• Two-pole, three-wire
• Painted galvanized steel NEMA 3R (rainproof) enclosure
• UL Listed; NEC 230.62(C) compliant barrier

Key Specifications

• Catalog number: DG224NRK
• Amperage: 200 A
• Voltage: 240 V
• Configuration: 2-pole / 3-wire, fusible with neutral
• Fuse class: Class H
• Enclosure: NEMA 3R, painted galvanized steel
• Approx. size / weight (Eaton): 25.5 in H × 16 in W × 11.25 in D; 55 lb

Compatibility / Important Considerations

• Select fuse ampacity and type per load; Eaton notes max HP ratings apply when dual-element fuses are used.
• Professional installation required.
