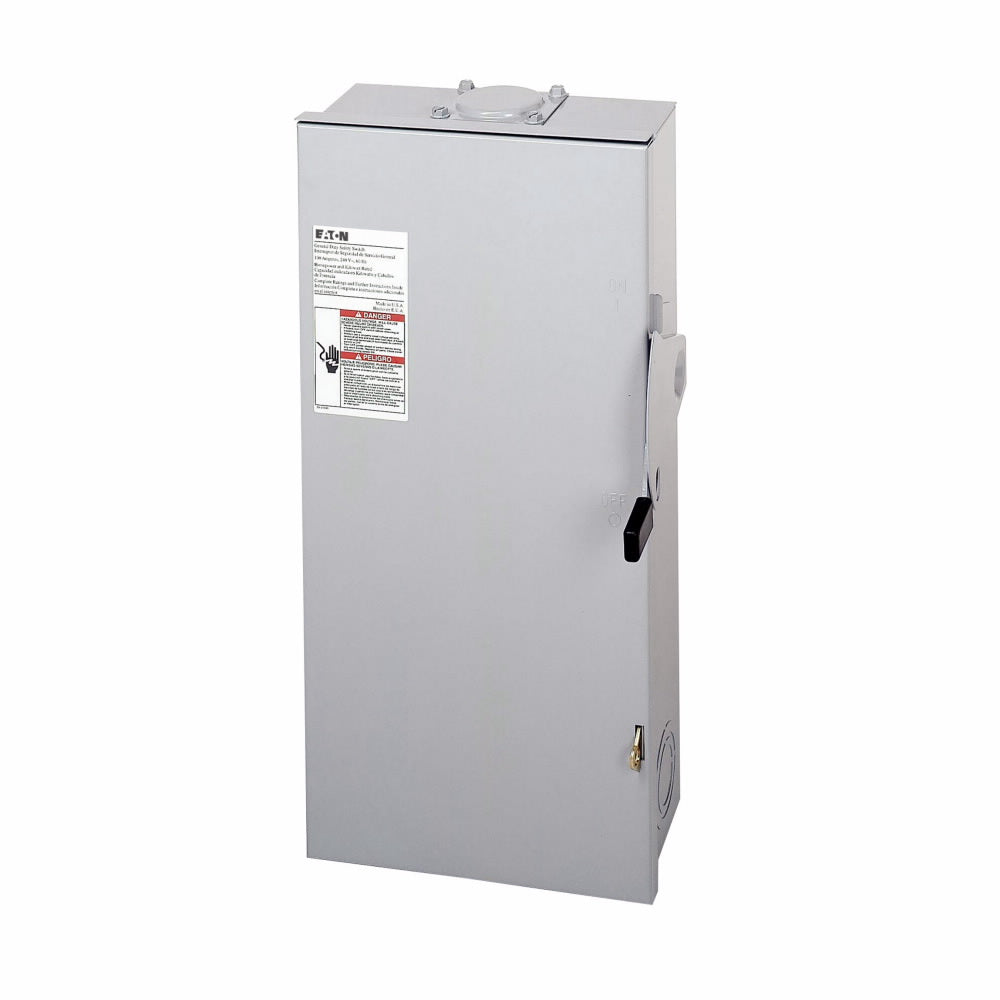

Eaton 100A Unfused AC Disconnect (DG223URB)

Product Overview

The Eaton DG223URB is a 100 A, 240 V general-duty non-fusible AC disconnect in a NEMA 3R outdoor enclosure. It provides a lockable means of disconnect for outdoor equipment without overcurrent devices in the switch itself.

Non-fusible (unfused) disconnects are used when overcurrent protection is already provided upstream (for example at a breaker). If you need fuses at the disconnect, choose a fusible DG*NR* model instead.

Best For

• Outdoor 100 A, 240 V disconnect points that do not need fuses in the switch
• AC isolation for solar, HVAC, or similar general-duty loads

Key Features

• General-duty non-fusible, single-throw safety switch
• Two-pole, two-wire
• Painted galvanized steel NEMA 3R (rainproof) enclosure
• UL Listed; NEC 230.62(C) compliant barrier

Key Specifications

• Catalog number: DG223URB
• Amperage: 100 A
• Voltage: 240 V
• Configuration: 2-pole / 2-wire, non-fusible
• Enclosure: NEMA 3R, painted galvanized steel

Compatibility / Important Considerations

• Eaton note: switch is not approved for service entrance unless a neutral kit is installed.
• Provide separate overcurrent protection sized to the conductors and load.
• Professional installation required.
