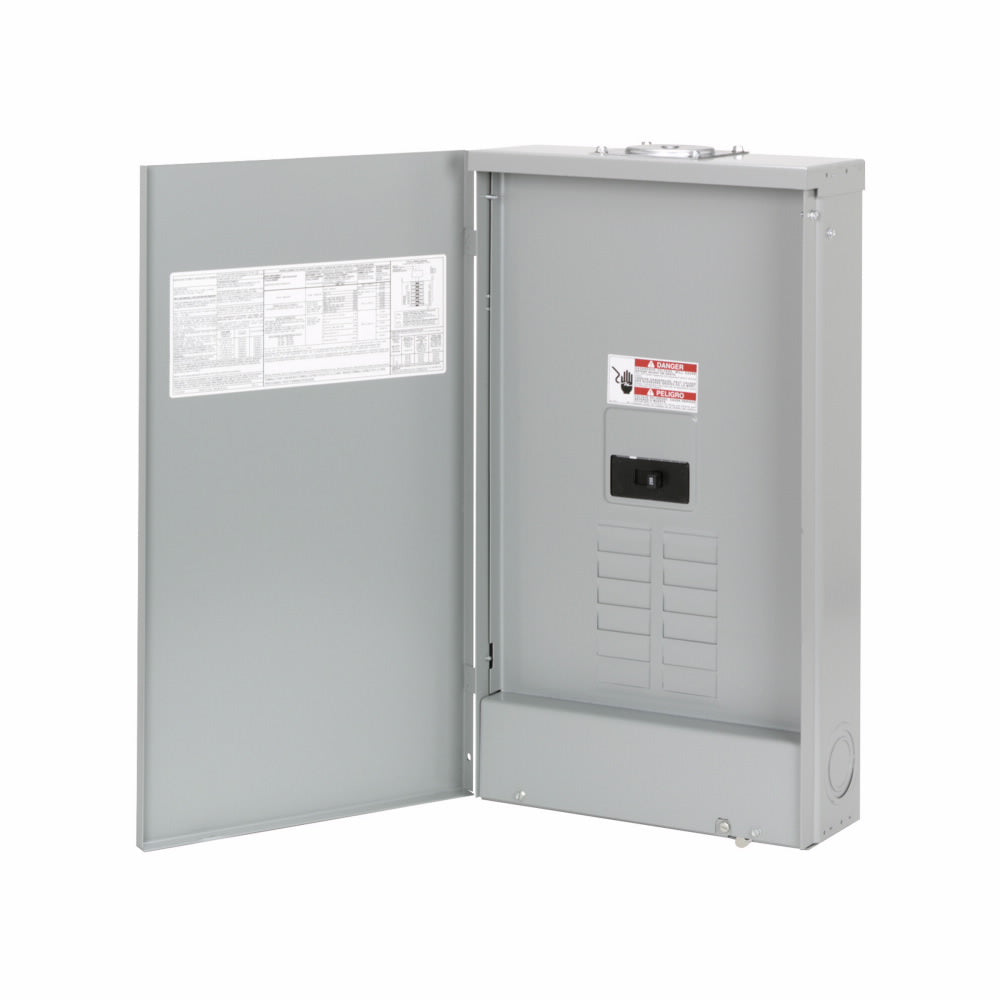

Eaton Type BR Plug-On Neutral Load Center, 12-Space/24-Circuit, NEMA 3R – BRP12B100R
SKUBRP12B100R
The Eaton BRP12B100R is a Type BR plug-on neutral main circuit breaker loadcenter in a metallic NEMA 3R enclosure. Eaton lists 12 spaces / 24 circuits, an aluminum bus, combination mounting, a cover included, and use with Type BR 1-inch breakers.
Couldn't load pickup availability
Need it anyway? Request a written quote. No payment is taken.
Delivery
Shipping weight 17.0 lb. Shipping, including freight for large items, is calculated at checkout before you pay.
Need help choosing or installing?
Get one hour of personalized help with equipment selection, system questions, commissioning, or troubleshooting. Purchase your session, then use the scheduling link provided after checkout to choose an appointment.
- Trusted since 1999
- Ships from US warehouses
- 4.8 stars · 681 Google reviews
Product Overview
The Eaton BRP12B100R is a Type BR plug-on neutral main circuit breaker loadcenter in a metallic NEMA 3R enclosure. Eaton lists 12 spaces / 24 circuits, an aluminum bus, combination mounting, a cover included, and use with Type BR 1-inch breakers.
Check the main ampere rating on the unit nameplate before sizing feeders.
Best For
- Compact Type BR outdoor/damp-location panels: Where a plug-on neutral NEMA 3R loadcenter with 12 spaces is specified.
- Jobs standardized on Type BR 1-inch breakers: Matching branch breakers to this family.
Key Features & Specifications
| Specification | Details |
|---|---|
| Product type | Plug-on neutral main circuit breaker loadcenter |
| Catalog number | BRP12B100R |
| Spaces / circuits | 12 spaces / 24 circuits |
| Bus material | Aluminum |
| Voltage rating | 120/240 V |
| Phase | Single-phase |
| Number of wires | Three-wire |
| Enclosure | NEMA 3R, metallic |
| Mounting | Combination |
| Cover | Cover included |
| Interrupt rating | 10 kAIC |
| Main circuit breaker | BR |
| Used with | Type BR 1-inch breakers |
| Certifications | UL 50; UL 67 |
| Source | Eaton Specification Sheet for this catalog number (retrieved Oct 8, 2026) |
What You May Also Need
Usually required
- Type BR 1-inch branch breakers sized for each circuit.
- Check the main ampere rating on the unit nameplate before ordering feeders.
May be required
- Disconnects & Breakers: Outdoor disconnects as required by the design.
- Grounding and bonding accessories per Eaton instructions.
Optional upgrades
- Enclosures, Electrical & Safety: Related electrical balance-of-system hardware.
Check current manufacturer documentation before combining components, especially batteries, inverters, communications equipment and system-control hardware.
Important Considerations
- Do not size feeders from this page alone — check the main ampere rating on the unit nameplate and current Eaton documentation.
- Use only Type BR 1-inch breakers.
- NEMA 3R is rainproof — seal openings per instructions.
- Professional installation required.
