The Science of Aquion Batteries – Clean, Safe Energy Storage

Aquion Batteries – A New Option for Solar Power Systems

Aquion Energy’s unique salt water batteries provide energy storage a whole new way. Instead of the traditional lead acid deep cycle batteries we are used to using for renewable energy, they use completely non toxic, non hazardous ingredients.

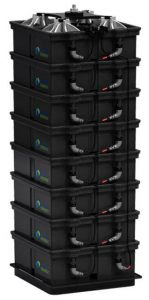

The batteries are available in two form factors. The Aquion stack is a single 48 volt 48 amp-hour (Ah) battery.

The module is 12 of the stacks pre-wired together in a single form factor that is forklift ready to be placed on site. It is a large 48V 579AH battery.

The Aquion batteries can be wired together in parallel with no limitations to the number of batteries wired together, allowing for extremely large commercial and even utility scale systems.This is very different from lead acid batteries, that have a limit of wiring about three strings in parallel, which can limit its scalability.

Battery Basics – Old School First

To understand what Aquion Energy has done, let’s first take a look at the components of a traditional lead acid battery and how they work.

A battery is made up of multiple metal plates forming the cathode (-) and anode (+), immersed in an electrolyte solution. In a lead acid battery, the plates are made of lead (lead dioxide on the negative plates and pure lead on the positive plates) and the electrolyte is sulfuric acid diluted in water.

When charging and discharging a battery, a chemical reaction occurs. When a load is put on a battery, discharging the battery, the electrolyte molecules break down into separate  ions.  The negative cathode reacts to the ions and releasing positive electrons. The positive anode also reacts to the ions and receives the excess of positive ions. This creates an imbalance of electrons, causing the flow of electrons from the anode to the cathode to try to restore balance.  This is the flow of electricity.

As a battery discharges, the anode and cathode plates become more chemically alike, the electrolyte becomes weaker , and the voltage drops. To charge the battery back up, the process is reversed.

Aquion Batteries Use a Different Chemistry
(salt water, cotton and minerals)

In an Aquion Energy battery, the cathode is Manganese Oxide, the separator is basically cotton, the anode is carbon,  and the electrolyte is salt water. All are safe, recyclable, and abundant.

When an Aquion battery is charged, the salt ions intercalate, or are embedded, into the carbon anode, moving away from the cathode. When the battery is discharged, the salt leaves the anode and is embedded back into the Manganese Oxide cathode.

Cradle to Cradle Certification Means Environmentally Safe Batteries

These non-toxic materials allowed the Aquion Energy batteries to achieve the first Cradle to Cradle certification for batteries, proving to be safe for the environment from creation to recycling. The battery contains no heavy metals or toxic material, and is non-flammable and non-explosive.

You Discharge Aquion Batteries to Zero & They Won’t Die

Due to its design, the battery has different capabilities than a lead acid battery. It can be discharged all the way down to 0% depth of discharge without damaging the battery. Simply charge it back up and it will continue on same as usual.

It is also perfectly fine with always being in a partial state of charge (PSOC), which means not being recharged to 100% each cycle. Lead acid batteries need to be fully charged to prevent early death by sulphating, where sulphate crystals form on the plates when they are not charged to 100%.

Since more of the Aquion battery capacity can be used than a lead acid battery bank, a smaller Aquion battery bank is needed for the same size solar system.

Aquion batteries importantly offer more discharging cycles than lead acid batteries do for the same level of discharge. See the graphs below for the comparison.

Slower Charge/Discharge Rate

Due to high internal resistance of the batteries, Aquion batteries do not like to be charged and discharged at a high current. As a result, the batteries’ storage capacity goes down as you charge or discharge faster. A battery that is being fully discharged in 4 hours,at a fast rate will be able to hold much less than a battery that is being discharged over 20 hours, at a slow rate.  Likewise with charging.

This chart shows that a battery being charged at a rate of 2 amps can store 2.6kWh (48V 54Ah), while a battery being charged at a rate of 10 amps can store 1.2kWh (48V 25Ah). The same battery becomes half its size by charging 5 times faster.

How to Size an Aquion Salt Water Battery Bank

Calculating the correct size for an Aquion battery bank is different than sizing a lead acid battery bank. Sizing the battery is a two step process to make sure you have enough storage capacity as well as aren’t charging or discharging too rapidly, so the sizing is done based on the amount of current you will be pulling out (discharging) and putting into (charging) the battery as well as capacity, how much energy you have to store.

The following example shows how to size a battery bank based on the amount of energy you need to store AND the rate of power you need to use it.

Example Aquion System Sizing:

Step #1: Size for energy storage

4kWh  (4000 watt-hours) storage needed from an off-grid 2000W solar power system with 3 days of autonomy (4kWh x 3 days = 12kWh storage total needed). Charging via solar during the day over 8 hours, and using the power throughout the day and night for 20 hours.

Watt Hours (Wh) in each stack at charge/discharge rate		Charge Duration (hours)
		4	8	10	12	20
Discharge Duration (hours)	4	1,264	1,520	1,600	1,647	1,803
	8	1,335	1,672	1,780	1,848	2,055
	12	1,389	1,775	1,900	1,982	2,217
	20	1,569	2,046	2,200	2,307	2,603

12,000Wh / 2,046Wh per stack = 5.8, round up to 6 stacks needed for storage

Step #2: Size for Power

Instantaneous power used at site will be as much as 4,800W, to power a well pump, refrigerator, and some power tools.

Each stack should not be discharged faster than 14.1 amps, or 680 watts (14.1A x 48V = 680W). So  take 4,800W draw ➗ 680W max = 6.6,  and round up to determine that 7 stacks needed.

Six stacks are enough to store the power, but the seventh stack is required to distribute the load and keep the power draw lower than 680W per stack.

How would a lead acid battery bank look for this situation?

By comparison, when sizing the same system for a lead acid battery, the sizing takes into consideration depth of discharge, inverter efficiency, temperature compensation, and days of autonomy. Here is the calculation we'd do:

4,000Wh ➗ .95 inverter efficiency x 3 days autonomy  x 1.1 temperature compensation ➗ 50% DoD / 48V = 579Ah 48V (27.7kWh bank)

This is over twice as big as the Aquion battery bank for the same system.

The following chart compares a system with lead acid batteries with an Aquion Energy battery bank. To compare apples to apples, we’ve used the same technique to size both battery banks.

Step 1	Determine daily watt hour (Wh) needs
	Average daily Wh  ÷	Inverter efficiency +	Average daily DC Wh	=	Average daily Wh
	4,000  ÷	.95   +	0	=	4210Wh
Step 2	Determine Size of Battery Bank
Type	Average Daily Wh  x	Days Autonomy x	Battery temperature multiplier	÷ DoD%	= Average daily Wh storage
Lead Acid	4210   x	3        x	1.1    ÷	.5	= 27,786Wh
Aquion AHI	4210   x	3        x	1       ÷	.9	= 14,033Wh
Step 3	Determine Battery Bank Amp Hours (Ah)
Type	Average daily Wh storage	÷	Battery Voltage	=	Battery Bank Ah
Lead Acid	27,786Wh	÷	48V	=	579Ah
Aquion AHI	14,033Wh	÷	48V	=	292Ah
Step 4	Determine Lifecycle cost of ownership
Type	# Cycles	Wh Storage	Total Wh life of battery bank	Cost of Bank	Cost per kWh
Lead Acid	1500   x	27,789Wh	= 41.6MWh	$8,000	$0.19
Aquion AHI	3500   x	14,033Wh	= 49.1MWh	$8,400	$0.17

So while the price per watt hour is more for the Aquion Batteries than lead acid, because a smaller Aquion battery bank is needed, they can end up costing about the same. The big savings are when you look at the life of the system. Because you can get more cycles from the Aquion battery bank, the cost of the longer life of the Aquion is less per Wh.

Also good to note – since this is a very unique, singular alternative for energy storage in the market, you can imagine, they are difficult to keep in stock – everyone wants them!  The manufacturer comes out with a new and improved upgraded version every year, that is backwards and forward compatible with older/newer versions, and we work closely with them to stay on top of their supply chain.

But please give us a call at the altE Store and talk to us to see if the Aquion Energy batteries are a good fit for your solar system!
