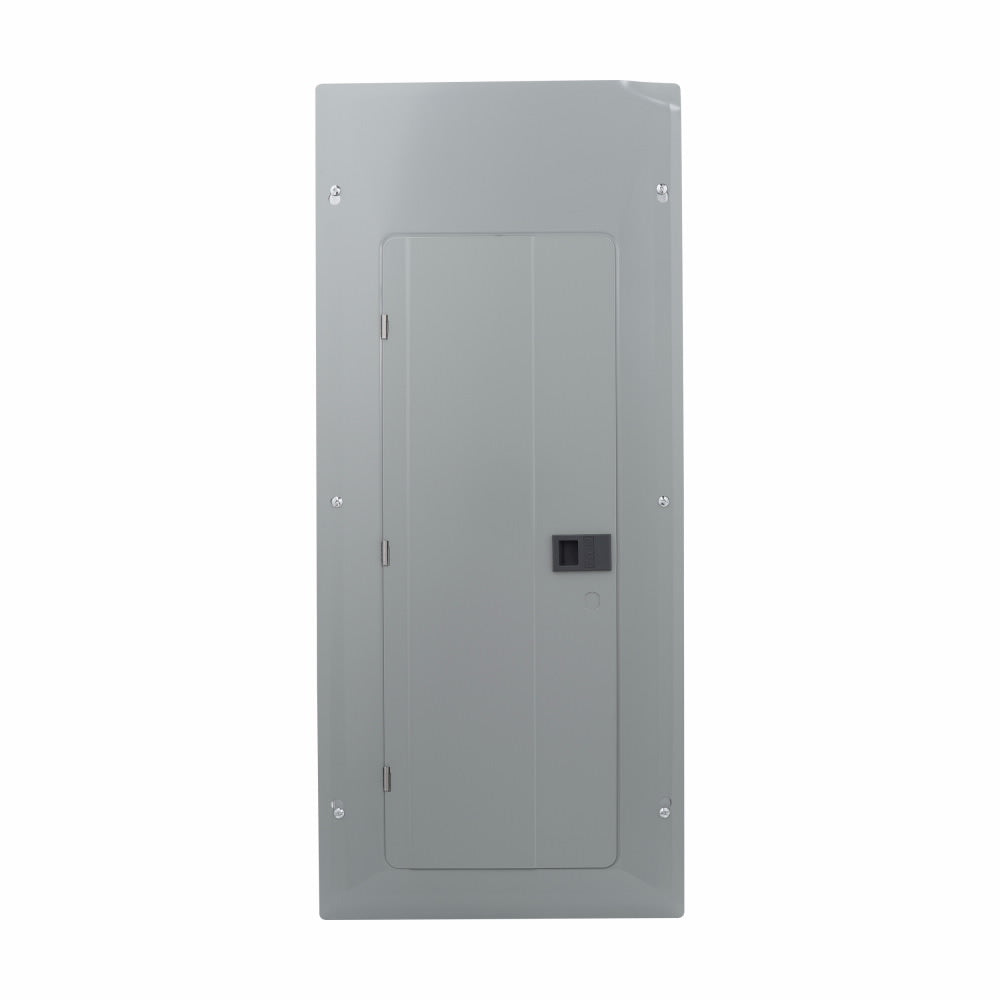

Eaton Load Center, 200A, Surface Mount – BRP30B200

Product Overview

The Eaton BRP30B200 is a Type BR plug-on neutral main breaker loadcenter for indoor 120/240 V single-phase distribution. At 200 A with 30 spaces and 60 circuits, it is sized for many whole-home service panels or large subpanels where you need room for branch breakers.

Plug-on neutral simplifies branch neutral connections compared with wiring every neutral to a bar with pigtails. The panel ships with a ground bar and the BREQS125 hold-down screw kit for backfed breaker applications where required.

Best For

• Indoor residential main or large subpanel service at 200 A
• Projects standardized on Eaton Type BR breakers
• Installations needing a plug-on neutral bus and high circuit count

Key Features

• 200 A main breaker (CSR2200) plug-on neutral loadcenter
• 30 spaces / 60 circuits
• Aluminum bus; cover included
• Includes ground bar and BREQS125 hold-down screw
• Combination surface/flush mounting (NEMA 1 indoor enclosure)

Key Specifications

• Catalog number: BRP30B200
• Amperage rating: 200 A
• Voltage: 120/240 V, single-phase
• Interrupt rating: 25 kAIC
• Bus: aluminum
• Spaces / circuits: 30 / 60
• Main breaker: CSR2200
• Enclosure: NEMA 1, metallic; box size X6
• Breaker family: Type BR 1-inch
• Certifications: UL 50, UL 67

Compatibility / Important Considerations

• NEMA 1 is for indoor / dry locations only — not rainproof.
• Use Type BR breakers only. Verify hold-down requirements when backfeeding.
• Professional installation required. Follow Eaton instructions and the NEC.
