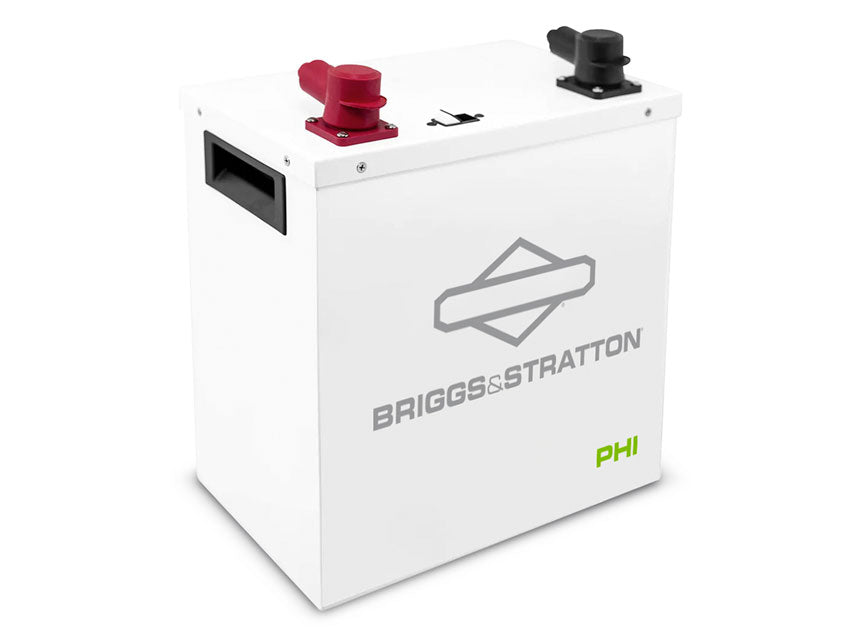

Briggs & Stratton PHI 3.8-M 3.87kWh 48V LFP Battery
SKUPHI-3.8-48-M
The Briggs & Stratton PHI 3.8-M (model PHI-3.8-48-M) is a 48-volt lithium battery that stores electricity for later use. It holds 3.87 kWh of energy, which is roughly what it takes to run a 1,000-watt load for close to four hours using...
Couldn't load pickup availability
Need it anyway? Request a written quote. No payment is taken.
Delivery
Shipping weight 91.0 lb. Shipping, including freight for large items, is calculated at checkout before you pay.
Need help choosing or installing?
Get one hour of personalized help with equipment selection, system questions, commissioning, or troubleshooting. Purchase your session, then use the scheduling link provided after checkout to choose an appointment.
- Trusted since 1999
- Ships from US warehouses
- 4.8 stars · 681 Google reviews
Product Overview
The Briggs & Stratton PHI 3.8-M (model PHI-3.8-48-M) is a 48-volt lithium battery that stores electricity for later use. It holds 3.87 kWh of energy, which is roughly what it takes to run a 1,000-watt load for close to four hours using the full 100% depth of discharge (before inverter losses). It is a building block: you can connect more of the same 48 V batteries side by side (in parallel) to store more energy.
The battery uses lithium iron phosphate (LFP) chemistry, which contains no cobalt. Briggs & Stratton says this lowers the risk of thermal runaway (a battery overheating out of control) and fire spreading. Inside is a battery management system (BMS) that protects the cells. On the outside is a 100 A DC breaker that works as an on/off switch and as overcurrent protection (earlier production used an 80 A breaker).
The PHI 3.8-M doesn't make AC power on its own. It connects to a 48 V battery inverter or inverter/charger, and that inverter powers your home or equipment. Solar panels, the grid or a generator can recharge it through properly set-up charging equipment.
Best For
- Off-grid homes and cabins: Store daytime solar power for use at night where utility power isn't available. Briggs & Stratton lists the battery for on-grid and off-grid installations.
- Home backup: Keep critical loads running during utility outages as part of a properly designed backup system with a battery inverter.
- Replacing a lead-acid battery bank: Briggs & Stratton calls the PHI 3.8-M ideal for lead-acid battery replacement. Your inverter and charger settings must be changed to the PHI battery's settings.
- Daily cycling to cut electric bills: Rated for 10,000+ cycles at 80% depth of discharge, so it can be charged and used every day. Briggs & Stratton lists daily savings on electricity bills as a use.
- Small commercial systems: The manufacturer lists residential and commercial installations.
Key Features & Specifications
| Specification | Details |
|---|---|
| Product type | 48 V lithium iron phosphate (LFP) battery module with built-in BMS |
| Manufacturer part number | PHI-3.8-48-M |
| Nominal voltage | 51.2 VDC (a "48 V" battery). It must match a 48 V inverter or charger. |
| DC voltage range | 48–56 VDC |
| Capacity | 75 Ah |
| Rated energy | 3.87 kWh DC at 100% depth of discharge; 3.10 kWh DC at 80% depth of discharge (Briggs & Stratton's product page lists 3.8 kWh at a C/2 discharge rate). This is how much energy the battery can store. Depth of discharge (DoD) is how much of that energy you use before recharging. |
| Maximum continuous charge / discharge | 37.5 A DC (1.9 kW DC). This is the steady power one battery can deliver or accept. More batteries in parallel raise this limit. |
| Maximum discharge (10 minutes) | 80 A DC (4.1 kW DC), for short bursts of higher power |
| Built-in protection | Battery management system (BMS); accessible 100 A DC breaker on/off switch with overcurrent protection (OCPD). Earlier production used an 80 A breaker. |
| Depth of discharge | Up to 100% |
| Cycle life | 10,000+ cycles at 80% DoD. One cycle is one full charge and discharge. |
| Round-trip efficiency | 96%. About 96% of the energy you put in comes back out. |
| Charging temperature | 32°F to 120°F (0°C to 49°C). Don't charge it below freezing. |
| Operating temperature | −4°F to 140°F (−20°C to 60°C) |
| Storage temperature | 6 months: 14°F to 77°F (−10°C to 25°C); 3 months: −4°F to 113°F (−20°C to 45°C) |
| Self-discharge | Less than 1% per month |
| Certifications | UL 1973, UL 1642; certified to UL 9540; UL 9540A fire safety tested; UN 3480 (shipping class for lithium-ion batteries) |
| Terminals; battery cables | 3/8 in (10 mm) terminals. Briggs & Stratton's spec sheet lists 6 AWG as the minimum battery cable; the installation manual says each battery's leads are typically 4 AWG, sized to the built-in breaker. |
| Dimensions | 13.5 × 14 × 8 in (W × H × D); 15.5 in tall with terminals |
| Weight | 86 lb (39.0 kg) |
| Warranty | 10 years (see Briggs & Stratton's warranty document for complete terms) |
What You May Also Need
Usually required
- 48 V battery inverter or inverter/charger: Turns the battery's DC power into AC power for your loads, and usually charges the battery too. Choose one rated for a 48 V battery and sized for your loads, then program it with Briggs & Stratton's PHI battery settings.
- Battery cables: Connect the battery to the inverter and to other batteries. Briggs & Stratton lists 6 AWG as the minimum, but its installation manual says each battery's leads are typically 4 AWG, sized to the battery's built-in breaker, and local code may require sizing to the breaker or to the battery's surge rating. The terminals are 3/8 in (10 mm).
- Overcurrent protection and disconnects: The battery has its own breaker. Briggs & Stratton's manual also calls for breakers, disconnects and fuses at several points in the system so each part can be isolated and protected. Ratings come from electrical code.
May be required
- Hybrid inverter or solar charge controller: Needed if solar panels will charge the battery. A hybrid inverter combines the inverter and solar charger in one unit.
- More PHI-3.8-48-M batteries: To store more energy or deliver more continuous power. Add only more of the same 48 V model, connected in parallel.
Optional upgrades
- Battery or system monitoring: Shows state of charge and system activity. Check Briggs & Stratton documentation to confirm which monitoring products it lists for the PHI 3.8-M.
Check current manufacturer documentation before combining components, especially batteries, inverters, communications equipment and system-control hardware.
Important Considerations
- Parallel only, never series. PHI batteries are built to run at a fixed voltage. Briggs & Stratton's manual says wiring them in series to raise voltage will damage them. Don't mix this 48 V model with the 24 V PHI-3.8-24-M.
- Size the battery bank for your inverter. Briggs & Stratton's product page says battery bank-to-inverter output sizing should follow a 2:1 ratio. The installation manual explains how to size for both discharge and charge rates. Going over the battery's charge or discharge limits voids the warranty.
- Use the manufacturer's inverter settings. Inverters and charge controllers must be programmed to Briggs & Stratton's settings for the PHI battery. Wrong settings void the warranty.
- Fully charge before first use. The manual says to fully charge PHI batteries before connecting loads, and to check polarity with a voltmeter before turning on the breaker.
- Temperature. Don't charge below 32°F (0°C). Charging in sub-freezing temperatures voids the warranty.
- Location. The battery is not ignition-protected. Don't install it where ignition-protected equipment is required, such as a confined space with vented batteries, natural gas, liquid petroleum gas (LPG) or gasoline. It can be mounted terminals-up or on its side, but never upside down with the terminals facing the floor. The specification sheet doesn't list an outdoor or enclosure rating.
- Weight and installation. Each battery weighs 86 lb. Fuses, breakers and wire sizes should follow electrical code, and Briggs & Stratton recommends review by certified electricians or licensed installers.
