Enphase Power Kit Including an IQ System Controller 2 and Rapid System Shutdown Switch
Enphase Power Kit Including an IQ System Controller 2 and Rapid System Shutdown Switch
Regular price
$2,301.83
Regular price
Sale price
$2,301.83
Unit price
/
per
Enphase power kit with a IQ System Controller 2 and RSD switch
The Enphase IQ System Controller 2 connects the home to grid power, the IQ Battery system, and solar PV. It provides microgrid interconnection device (MID) functionality by automatically detecting and seamlessly transitioning the home energy system from grid power to backup power in the event of a grid failure. It consolidates interconnection equipment into a single enclosure and streamlines grid independent capabilities of PV and storage installations by providing a consistent, pre-wired solution for residential applications.
Each Enphase Storage system with IQ8 PV requires the presence of a rapid shutdown (RSD) switch. Rapid shut down switch is needed to disconnect all PV panels, battery and generator systems in the building/home to ensure the safety of maintenance technicians. When the RSD switch is engaged, the Enphase storage system will be shutdown and the home is connected to the grid
Electrical Specifications
Nominal voltage / range (L-L) 240 VAC / 100 - 310 VAC
Nominal frequency / range 60 Hz / 56 - 63 Hz
Maximum continuous current rating: 160A
Maximum output overcurrent protection device: 200A
Maximum input overcurrent protection device: 200A
Maximum overcurrent protection device rating for storage branch circuit: 80A
Maximum overcurrent protection device rating for PV combiner branch circuit: 80A
Neutral Forming Transformer (NFT)
Breaker rating (pre-installed): 40A between L1 and Neutral; 40A between L2 and Neutral
Continuous rated power: 3600VA
Maximum continuous unbalance current: 30A @ 120V
Peak rated power: 8800VA for 30 seconds
Peak unbalanced current: 80A @ 120V for 30 seconds
Controller Mechanical Data
Environmental rating: Outdoor, NEMA type 3R, polycarbonate construction
Dimensions (WxHxD): 19.7 in x 36 in x 9.7 in (50cm x 91.6cm x 24.6cm)
Weight: 87 lbs.
Cooling: Natural convection, plus heat shield
Altitude To 8200 feet

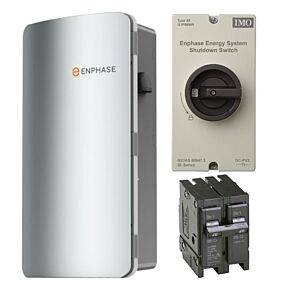

Kit Includes:
IQ System Controller 2 (EP200G101-M240US01)
RSD switch (EP200G-NA-02-RSD)
Breaker for IQ Gateway pre-installed in generator spot of IQ System Controller (BRK-20A-2P-240V)
20 ft of color-coded wires (along with corresponding color-coded labels) to improve installation experience
Warranty: 10 years
