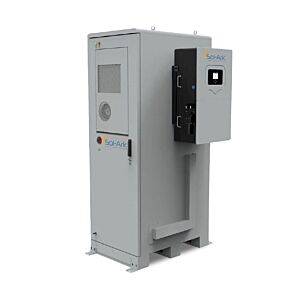

Sol-Ark L3-HVR-60KWH Outdoor Battery Bank

The Sol-Ark L3-HVR-60KWH is a high-voltage modular solar battery system that can store energy from solar panels and convert it into AC electricity. The L3-HVR-60KWH battery is made up several (12) 5.12 kWh batteries to make 60kWh. The BOS-G(HV) is easily scalable, and you can expand your power setup with the attachment of additional battery modules.
The Sol-Ark L3-HVR-60KWH is designed for various energy storage needs and offers flexibility and scalability to cater to different applications. It has a wide temperature range of -20°C to 55°C, with excellent discharge performance and cycle life. The system is non-toxic, non-polluting, and environmentally friendly.
Features / Innovations:
* Prismatic cells offer maximum reliability, efficiency, and safety
* Automatic configuration of batteries and BMS
* 5kW packs include built-in fire suppression
* Supports USB and wifi upgrade (optional), remote upgrade
* Modular batteries can easily be connected in parallel or series to increase capacity or voltage
* 10-Year Warranty
Technical Specifications:
* Cell Chemistry: LiFePO4
* AC Output Frequency and Voltage: 277/480V, 3L/N/PE, 50 or 60Hz
* Nominal Energy: 61.4kWh
* Nominal Capacity: 100Ah
* System Nominal Voltage: 614.4V
* System Operating Voltage: 499.2 ~ 691.2V
* Charge/Discharge Current: Recommend: 50A, Nominal: 100A, Peak Discharge: 125A
* IP Rating of Enclosure: IP55
* Dimension (Inches): 29.5W x 41.3D x 88.6H
* Weight Approximate: 2094.4
* Certification: CE, IEC62619, VDE2510-50, UL1973, UL9540A, UN38.3, UL9540
* Warranty: 10 Years
