Sol-Ark

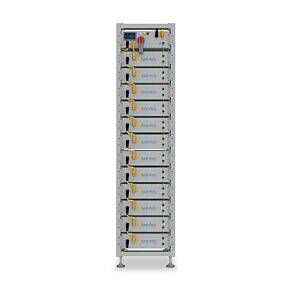

Sol-Ark L3-HV-60-KWH Indoor Battery Bank

Sol-Ark L3-HV-60-KWH Indoor Battery Bank

Regular price $30,700.00
Regular price Sale price $30,700.00
Sale Sold out
Sol-Ark L3-HV-60-KWH High Voltage Battery
The Sol-Ark L3-HV-60-KWH is a high-voltage modular solar battery system that can store energy from solar panels and convert it into AC electricity. The L3-HV-60-KWH battery is made up of several (12) 5.12 kWh batteries to make 60kWh. The BOS-G(HV) is easily scalable, and you can expand your power setup with the attachment of additional battery modules.
The Sol-Ark L3-HV-60-KWH is designed for various energy storage needs and offers flexibility and scalability to cater to different applications. It has a wide temperature range of -20°C to 55°C, with excellent discharge performance and cycle life. The system is non-toxic, non-polluting, and environmentally friendly.
Features / Innovations:
Prismatic cells offer maximum reliability, efficiency, and safety
Automatic configuration of batteries and BMS
5kW packs include built-in fire suppression
Supports USB and wifi upgrade (optional), remote upgrade
Modular batteries can easily be connected in parallel or series to increase capacity or voltage
10-Year Warranty
Technical Specifications:
Cell Chemistry: LiFePO4
Module Energy: 5.12kWh
Module Nominal Voltage: 51.2V
Module Capacity: 100Ah
Battery Module Qty In Series (Optional): 12
System Nominal Voltage: 614.4V
System Operating Voltage: 499.2 ~ 700V
System Energy: 61.44kWh
System Usable Energy: 55.29kWh
Charge/Discharge Current: Recommend: 50A, Nominal: 100A, Peak Discharge: 125A
Communication Port: CAN2.0/RS485
IP Rating of Enclosure: IP20
Dimension (Inches): 23.19W x 23.2D x 88.19H
Weight Approximate: 1384.5
Certification: CE, IEC62619, VDE2510-50, UL1973, UL9540A, UN38.3, UL9540
Warranty: 10 Years
