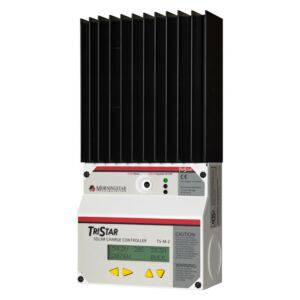

Morningstar TS-60M TriStar 60 Amp 12/24/48 Volt Solar Charge Controller with Meter

The Morningstar TriStar TS-60M is a robust and versatile three-function solar charge controller, providing reliable battery charging, load control, or diversion regulation. This model comes with the TS-M-2 digital meter pre-installed for convenient system monitoring. Configurable via DIP switches for various battery voltages (including 36V), the TriStar is UL listed and suitable for both residential and professional solar applications.

Key Features and Benefits:

Pre-Installed TS-M-2 Digital Meter: Provides real-time system monitoring directly on the controller.
Three-Function Controller: Can operate as a solar charge controller, load controller, or diversion load controller.
High Reliability: Large heat sink and conservative design for full-rated operation up to 45°C.
High Power Rating: Supports up to 60A at 48VDC, handling up to 4kW.
RS-232 Communication: Enables PC connection for custom settings, data logging, and remote monitoring.
Fully Adjustable: DIP switch provides 7 preset options, with custom settings via RS-232.
Extensive Electronic Protections: Fully protected against reverse polarity, short circuit, overcurrent, high temperature, and overvoltage.
Versatile Battery Voltage Support: Supports 12V, 24V, and 48V battery systems (and 36V via DIP switch).
Large Power Terminals: Simplifies wiring and accommodates larger cables.

Why Choose the Morningstar TriStar TS-60M?

The Morningstar TriStar TS-60M is a reliable and versatile solar charge controller, ideal for a wide range of solar applications. Its robust design, comprehensive protection features, and ability to function in multiple control modes make it a valuable component of any solar system. The pre-installed meter adds convenience for monitoring system performance.

Applications:

Off-Grid Solar Power Systems
Residential Solar Installations
Commercial Solar Installations
Industrial Solar Power Systems
RV and Marine Solar Systems

Specifications:

Charge Current Rating: 60 Amps
Nominal System Voltage: 12V, 24V, 48V (and 36V via DIP switch)
Controller Functions: Solar Charge Controller, Load Controller, Diversion Load Controller

Included:

Morningstar TriStar TS-60M Solar Charge Controller
TS-M-2 Digital Meter (pre-installed)

Warranty:

5-Year Warranty
