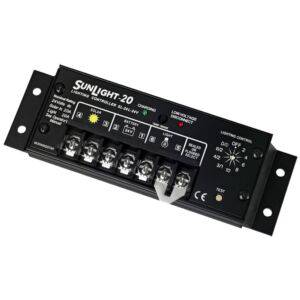

Morningstar SL-20L-24 SunLight 20 Amp 24 Volt Solar Lighting Controller

The Morningstar SunLight 20A 24V Solar Lighting Controller provides advanced, microcontroller-driven automatic lighting control for 24V solar lighting systems. Built on the reliable SunSaver platform, this controller is ideal for demanding applications like street, pathway, and area lighting. It requires a minimum 1-watt solar panel to detect day/night conditions.

Key Features and Benefits:

Automatic Lighting Control: Microcontroller-managed operation for reliable and efficient lighting schedules.
24V System Compatibility: Designed for 24Vdc lighting systems.
20 Amp Capacity: Handles higher lighting loads for larger installations.
10 Lighting Options: Rotary digital switch provides versatile lighting schedules (2-10 hours ON, all-night, ON/OFF/ON).
High Accuracy Timer: Ensures precise lighting schedules with 2-second timer accuracy.
Rugged and Durable Design: Anodized aluminum enclosure, epoxy encapsulation, and corrosion-resistant terminals for harsh environments.
Test Button and LED Indicator: Simplifies installation and confirms correct settings.
LVD Override Protection: Prevents deep battery discharge, protecting battery health.
Sunrise Override: Automatically turns off lights at sunrise, conserving energy.
PWM Battery Charging: Efficient and safe charging for extended battery lifespan.
Sealed/Flooded Battery Select: Adapts charging for different battery types.
Temperature Compensation: Optimizes charging based on battery temperature.
Parallel SunSaver Capability: Allows for 40A solar charging when used with a SunSaver.
Requires 1W+ Solar Panel: Needs a small solar panel for day/night detection.

Why Choose the Morningstar SunLight 20A 24V Controller?

The Morningstar SunLight 20A 24V Controller offers robust, reliable, and precise solar lighting control for larger 24V applications. Its durable design and advanced features make it ideal for demanding outdoor lighting environments.

Applications:

Street Lighting (24V)
Pathway Lighting (24V)
Parking Area Lighting (24V)
Signage Lighting (24V)
Bus Stations (24V)
Airfields (24V)
Remote Lighting Systems (24V)

Specifications:

Nominal System Voltage: 24 Volts
Rated Solar Current: 20 Amps
Rated Load Current: 20 Amps
Charging Type: PWM

Warranty:

5-Year Warranty
