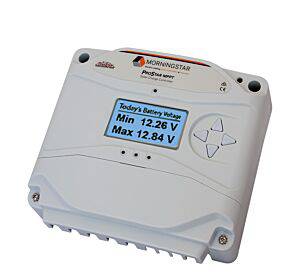

Morningstar PS-MPPT-25M ProStar MPPT 25 Amp Solar Charge Controller With Digital Meter

The Morningstar PS-MPPT-25M is a mid-range MPPT solar charge controller that balances performance and affordability. Equipped with a built-in digital meter for real-time monitoring, this 25A controller utilizes Morningstar's patented TrakStar technology to maximize solar energy harvest, outperforming traditional PWM controllers. It supports 12V and 24V systems and is compatible with all battery types, including Lithium Ion.

Key Features and Benefits:

Built-in Digital Meter: Provides real-time system monitoring.
TrakStar MPPT Technology: Maximizes solar energy yield for optimal performance.
25 Amp Charge Rating: Suitable for mid-sized off-grid solar systems.
12V and 24V Compatibility: Automatically detects and supports both system voltages.
Lithium-Ion Battery Charging: Charges all battery types, including Lithium.
120V Max. PV Open Circuit Voltage (Voc): Accommodates a wide range of PV array configurations.
High Power Handling: Up to 350W @ 12V and 700W @ 24V.
Automatic PV Lighting Load Control: Enables automated lighting control based on solar input.
Continuous Charging: No damage from PV array oversizing.
Extensive Data Logging: Stores up to 190 days of system data.
Built-in Self-Diagnostics: Simplifies troubleshooting and maintenance.
Durable Polycarbonate Case: Robust design for long-lasting performance.

Why Choose the Morningstar PS-MPPT-25M?

The Morningstar PS-MPPT-25M delivers high-performance MPPT charging with a built-in digital meter, making it a cost-effective and reliable choice for off-grid solar systems. Its compatibility with Lithium-Ion batteries and advanced features like TrakStar technology ensure optimal system performance and longevity.

Applications:

Off-Grid Solar Systems
RV Solar Systems
Marine Solar Systems
Remote Power Systems
(Note: UL 1741 compliance requires installation with the optional PS-MPPT-WB wire box.)

Specifications:

Charge Current: 25 Amps
System Voltage: 12V / 24V DC
Max. PV Open Circuit Voltage (Voc): 120V DC
Nominal Max. Operating Power: 350W @ 12V, 700W @ 24V

Included:

Morningstar PS-MPPT-25M Solar Charge Controller with Digital Meter

Warranty:

5-Year Warranty
