Morningstar Corporation

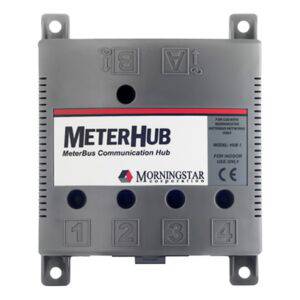

Morningstar HUB-1 MeterHub Solar Controller Communications Hub
Morningstar HUB-1 MeterHub Solar Controller Communications Hub
Regular price
$104.00
Regular price
Sale price
$104.00
Unit price
/
per
Couldn't load pickup availability
Morningstar MeterHub Adaptor
The MeterHub allows up to 15 Morningstar products on a single MeterBus network. The product electrically isolates devices that supply power to the network, preventing damage to the network in the event of grounding problems. Five status LED's indicate the proper network connection to each port. The MeterHub is suitable for either wall or DIN rail mounting.
Enables multiple controllers to share a single TriStar meter and display both single controller data (TriStar #1, TriStar #2) as well as aggregated data for the entire system.
Enables multiple controllers to share a single Relay Driver and fully utilize all 4 channels of the Relay Driver for different functions (alarms, load disconnects, generator starts) from multiple products.
Compatible With:
SunSaver-MPPT charge controller
TriStar 45 Amp and 60 Amp charge controllers
TriStar-MPPT 45 Amp and 60 Amp charge controllers
TriStar Meter-2
TriStar Remote Meter-2
Relay Driver
Included in the Box:
MeterHub Typical Network Configuration
Operator's Manual
Five Meterbus RJ-11 cables - each 1 meter in length
Four mounting screws
5 year warranty
The MeterHub allows up to 15 Morningstar products on a single MeterBus network. The product electrically isolates devices that supply power to the network, preventing damage to the network in the event of grounding problems. Five status LED's indicate the proper network connection to each port. The MeterHub is suitable for either wall or DIN rail mounting.
Enables multiple controllers to share a single TriStar meter and display both single controller data (TriStar #1, TriStar #2) as well as aggregated data for the entire system.
Enables multiple controllers to share a single Relay Driver and fully utilize all 4 channels of the Relay Driver for different functions (alarms, load disconnects, generator starts) from multiple products.
Compatible With:
SunSaver-MPPT charge controller
TriStar 45 Amp and 60 Amp charge controllers
TriStar-MPPT 45 Amp and 60 Amp charge controllers
TriStar Meter-2
TriStar Remote Meter-2
Relay Driver
Included in the Box:
MeterHub Typical Network Configuration
Operator's Manual
Five Meterbus RJ-11 cables - each 1 meter in length
Four mounting screws
5 year warranty
