MidNite Solar

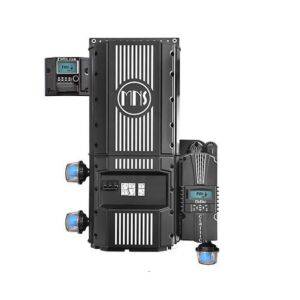

MidNite Solar MNROSIE7048-CL250-PW Rosie - Classic250 Pre-Wired System

MidNite Solar MNROSIE7048-CL250-PW Rosie - Classic250 Pre-Wired System

Regular price $5,775.00
Regular price Sale price $5,775.00
Sale Sold out
MidNite Solar MNROSIE7048-CL250-PW Rosie - Classic250 Pre-Wired System
The Rosie is the most versatile inverter/charger in its class. Ideal for Medium renewable energy systems. The Rosie Inverter/Charger is a battery-based, DC-to-AC inverter and AC-to-DC charger for off grid and mobile system. The MNROSIE7048RE is a 7000-watt inverter/charger with 60-amp AC transfer relay and 120-amp, multi-stage PFC battery charger. The AC IN and OUT have common Neutrals for use in renewable energy (RE) systems (homes/cabins). The AC Neutral and Ground do not have an internal bond. The bond must be made in the AC system (commonly at the AC service panel).
The MNGP2 graphics and programming module allows communication, monitoring and programming of all future MidNite products (Hawke's Bay, Barcelona and Rosie for example) from a single unit. The rotary dial provides easy access to all menus and devices on the network as well as the selection of custom programming within the various sub-menus
The Rosie E-Panel is an AC and DC enclosure offering over-current protection (OCP) and disconnects for AC IN, AC OUT, and to the battery bank. The E-Panel is designed specifically for the MidNite Solar MNROSIE7048 inverter/charger but may be used with any 120/240VAC inverter at 60A AC IN and OUT and 65VDC/100A out.
Features:
7000 Watts / 48 Volt DC
Extremely Lite Weight
Rosie Inverter: 42 Lbs.
Rosie E-Panel: 21 Lbs.
Rosie Backpanel: 8 Lbs.
Includes 2 MNSPD-300-AC
2 Aux Input/Outputs
120/240 Vac Output
True Sine Wave Inverter With Charger
Zero Transfer Time
Quiet Forced Air Cooling
State Of Charge Monitoring With MidNite Wizbang Jr. And MNGP2 Display
Die Cast Aluminum Enclosure
Auto Gen Start (Two-Wire Generators) Coming Soon
Battery Temperature Sensor Included
Remote Battery Voltage Senser
Canbus Communication
Lithium Compatible
60A Transfer Relay
Screened (Gecko/Mud Dauber Proof)
Listed UL1741 And CSA NOTE: CSA Pending On Breaker Boxes
Designed and Built in Arlington, WA USA
