MidNite Solar

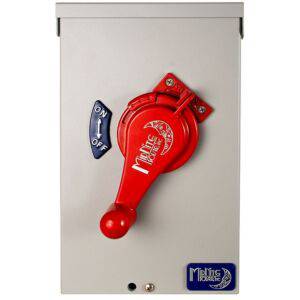

MidNite Solar MNPV6-DISCO AC MICRO Combiner
MidNite Solar MNPV6-DISCO AC MICRO Combiner
Regular price
$294.64
Regular price
Sale price
$294.64
Unit price
/
per
Couldn't load pickup availability
"MidNite Solar MNPV6-DISCO AC MICRO
Note: Not Compatible With The Birdhouse.Last photo demonstrates proper wiring for the MNPV6-DISCO AC MICRO. (Wires are not provided and breakers are sold separately.)
Enclosure only - 3R enclosure includes 2 busbars. Can use up to 3 of our 240 VAC breakers to combine up to 3 strings of 240 volt micro inverters.
The MNPV6-DISCO AC MICRO's red handled is LOCKABLE IN THE OFF POSITION!
This 3R enclosure includes 2 busbars. Can use up to 3 of our 240 VAC breakers to combine up to 3 strings of 240 volt micro inverters. Can be used up to 150 amps and 1/0 wire. Load break rated. Lockable in the off position. Included is the deadfront (MNPV6DF) and the MNPV6-DISCO-SLIDER
Depending upon the model number, you can use:
Type 3R environmental rating
DC 600V (1 circuit Pos or Pos and Neg switched) Part no. MNPV6
DC 300V (3 circuits) Part #MNPV6-250
DC 150V (6 circuits) Part #MNPV6
AC 120v 20 amps (6 circuits) Part #MNPV6
AC 240v 40 amps (3 circuits) Part #MNPV6-AC Micro
AC and DC can be installed in the same box!
Example: 600Vdc 20 amp PV in and 40 amp 240Vac Inverter output
Lockable Disconnect
Warranty - 5 yrs.
Listed by ETL for US & Canada
Made in the USA
13.2"L x 8"W x 6.2"D 7Lbs."
Note: Not Compatible With The Birdhouse.Last photo demonstrates proper wiring for the MNPV6-DISCO AC MICRO. (Wires are not provided and breakers are sold separately.)
Enclosure only - 3R enclosure includes 2 busbars. Can use up to 3 of our 240 VAC breakers to combine up to 3 strings of 240 volt micro inverters.
The MNPV6-DISCO AC MICRO's red handled is LOCKABLE IN THE OFF POSITION!
This 3R enclosure includes 2 busbars. Can use up to 3 of our 240 VAC breakers to combine up to 3 strings of 240 volt micro inverters. Can be used up to 150 amps and 1/0 wire. Load break rated. Lockable in the off position. Included is the deadfront (MNPV6DF) and the MNPV6-DISCO-SLIDER
Depending upon the model number, you can use:
Type 3R environmental rating
DC 600V (1 circuit Pos or Pos and Neg switched) Part no. MNPV6
DC 300V (3 circuits) Part #MNPV6-250
DC 150V (6 circuits) Part #MNPV6
AC 120v 20 amps (6 circuits) Part #MNPV6
AC 240v 40 amps (3 circuits) Part #MNPV6-AC Micro
AC and DC can be installed in the same box!
Example: 600Vdc 20 amp PV in and 40 amp 240Vac Inverter output
Lockable Disconnect
Warranty - 5 yrs.
Listed by ETL for US & Canada
Made in the USA
13.2"L x 8"W x 6.2"D 7Lbs."
