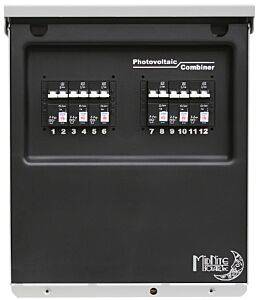

MidNite Solar MNPV12-250 Solar Array Combiner
MidNite Solar MNPV12-250 Solar Array Combiner
Regular price
$268.71
Regular price
Sale price
$268.71
Unit price
/
per
"MidNite Solar MNPV12-250 PV Combiner Box
Note: Circuit breakers are NOT included.
For 200 and 250 VDC charge controllers. Gray aluminum type 3R rainproof enclosure with insulating dead front, will accept six 300 VDC MidNite Solar breakers. Includes 15 position PV negative bus bar, 15 position ground bus bar, and 168 amp Plus bus bar for breakers. Plus busbars can be combined or separated to support 2 high voltage charge controllers. The MidNite Solar 300VDC circuit breakers can be found here. Listed by ETL for U.S. and Canada.
14.5" x 12" x 3.5"
8 lbs."
Note: Circuit breakers are NOT included.
For 200 and 250 VDC charge controllers. Gray aluminum type 3R rainproof enclosure with insulating dead front, will accept six 300 VDC MidNite Solar breakers. Includes 15 position PV negative bus bar, 15 position ground bus bar, and 168 amp Plus bus bar for breakers. Plus busbars can be combined or separated to support 2 high voltage charge controllers. The MidNite Solar 300VDC circuit breakers can be found here. Listed by ETL for U.S. and Canada.
14.5" x 12" x 3.5"
8 lbs."
