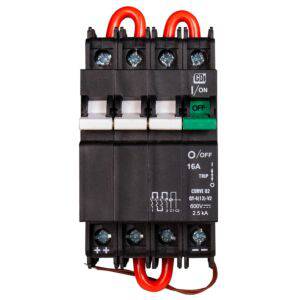

MidNite Solar MNEPV16-600RT Remote Trip Circuit Breaker 16 Amps
MidNite Solar MNEPV16-600RT Remote Trip Circuit Breaker 16 Amps
Regular price
$126.67
Regular price
Sale price
$126.67
Unit price
/
per
Couldn't load pickup availability
MidNite Solar MNEPV16-600RT Remote Trip Circuit Breaker 16 Amps and 600 Volts DC
The MidNite Solar MNEPV16-600RT remote trip circuit breaker is rated for 16 amps and 600 Volts DC. It's designed to work with the MidNite Solar Birdhouse rapid shutdown system and the disconnecting combiner boxes. Mounts to standard DIN rail.
This breaker has the Remote Trip feature that allows it to work with our Battery Disconnect Module ( MNBDM-24 or MNBDM-48 ) and the Rapid Shutdown system.
Environmental Rating - Type 1 (Indoor)
Breaker Torque Value: 20 In-Lbs (2.3NM)
Current Rating - 16A
DC Voltage Rating - 600VDC
Wire Size Range - 14 to 6 AWG
Width - 2 inches
Number of poles - 4
Listed for US
5 year warranty
The MidNite Solar MNEPV16-600RT remote trip circuit breaker is rated for 16 amps and 600 Volts DC. It's designed to work with the MidNite Solar Birdhouse rapid shutdown system and the disconnecting combiner boxes. Mounts to standard DIN rail.
This breaker has the Remote Trip feature that allows it to work with our Battery Disconnect Module ( MNBDM-24 or MNBDM-48 ) and the Rapid Shutdown system.
Environmental Rating - Type 1 (Indoor)
Breaker Torque Value: 20 In-Lbs (2.3NM)
Current Rating - 16A
DC Voltage Rating - 600VDC
Wire Size Range - 14 to 6 AWG
Width - 2 inches
Number of poles - 4
Listed for US
5 year warranty
