MidNite Solar

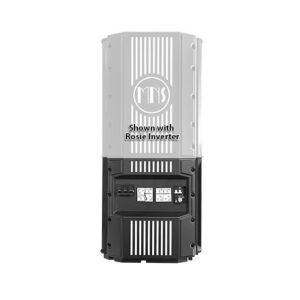

MidNite Solar MNE300ROSIE-240P E-Panel is an AC and DC Enclosure
MidNite Solar MNE300ROSIE-240P E-Panel is an AC and DC Enclosure
Regular price
$667.50
Regular price
Sale price
$667.50
Unit price
/
per
Couldn't load pickup availability
"MidNite Solar MNE300ROSIE-240P E-Panel
The Rosie E-Panel is an AC and DC enclosure offering over-current protection (OCP) and disconnects for AC IN, AC OUT, and to the battery bank. The E-Panel is designed specifically for the MidNite Solar MNROSIE7048 inverter/charger but may be used with any 120/240VAC inverter at 60A AC IN and OUT and 65VDC/100A out.
Features:
Terminal blocks to attach optional MidNite Solar Surge Protection Devices
Styled to match the MNROSIE7048 inverter/charger
80VDC, 300A, battery positive circuit breaker
Listed to UL1741 and CSA 107.01 Standards(Pending)
60A AC Bypass circuit breaker assembly
60A AC IN and AC OUT circuit breakers
Optional backplate for mounting
Ground busbar
Part Dimensions: 13-13/16"L x 8-1/4"D x 13-15/16"W
Shipping Dimensions: 20-1/8"L x 11-1/2"D x 17-3/4"W
Weight: 17.5 lbs
Shipping Weight: 22 lbs"
The Rosie E-Panel is an AC and DC enclosure offering over-current protection (OCP) and disconnects for AC IN, AC OUT, and to the battery bank. The E-Panel is designed specifically for the MidNite Solar MNROSIE7048 inverter/charger but may be used with any 120/240VAC inverter at 60A AC IN and OUT and 65VDC/100A out.
Features:
Terminal blocks to attach optional MidNite Solar Surge Protection Devices
Styled to match the MNROSIE7048 inverter/charger
80VDC, 300A, battery positive circuit breaker
Listed to UL1741 and CSA 107.01 Standards(Pending)
60A AC Bypass circuit breaker assembly
60A AC IN and AC OUT circuit breakers
Optional backplate for mounting
Ground busbar
Part Dimensions: 13-13/16"L x 8-1/4"D x 13-15/16"W
Shipping Dimensions: 20-1/8"L x 11-1/2"D x 17-3/4"W
Weight: 17.5 lbs
Shipping Weight: 22 lbs"
