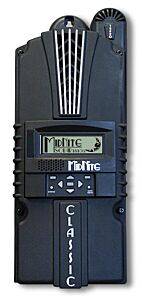

MidNite Solar Classic 150 MPPT Charge Controller

MidNite Solar Classic 150 MPPT Charge Controller – Advanced 96A DC Solar Controller with Built-In Arc Fault Protection

Maximize the performance of your off-grid or grid-tied solar PV system with the MidNite Solar Classic 150, a highly versatile and intelligent MPPT charge controller. Rated for up to 96 amps of charging current and 150VDC input, it’s compatible with a wide range of battery types and solar configurations—including 12V, 24V, 48V, and even higher-voltage battery banks.

⚡ Key Features & Benefits:

• ✅ Maximum Power Point Tracking (MPPT)
  Advanced MPPT technology increases energy harvest by up to 30% compared to PWM controllers, optimizing voltage and current for peak output.

• ✅ 96 Amps of Charging Power
  One of the most robust controllers in its class—ideal for large battery banks and multi-panel arrays.

• 🛡️ Built-In Arc Fault Protection
  Meets NEC 2011 requirements with integrated arc fault detection, adding a critical layer of safety for residential and commercial systems.

• 🎛️ Comprehensive Display and Logging
  Intuitive graphical interface with built-in logging, setup assistant, and diagnostics tools.

• 📐 String Sizing Tool Available
  Use the Classic String Sizing Tool to easily configure your array for optimal voltage and current matching.

🧰 Applications:

• Off-grid residential & cabin solar systems

• Battery backup and hybrid solar installations

• Solar + wind or hydroelectric hybrid charging

• High-capacity energy storage systems

• Remote telecom, lighting, and automation

🛠️ Specifications:

• Model: Classic 150

• Max Input Voltage (Voc): 150VDC

• Max Output Current: 96A

• Battery Voltage Range: 12V–72V

• Certifications: UL 1741, CE, FCC Class B

• Communication Ports: Ethernet, USB, RS232

• Arc Fault Protection: Included

• Weight: ~11 lbs

• Warranty: 5 years
