GoodWe

GoodWe GW7700-MS-US30 APS LAN Grid Tied Single Phase Inverter with APS Rapid Shutdown Transmitter

GoodWe GW7700-MS-US30 APS LAN Grid Tied Single Phase Inverter with APS Rapid Shutdown Transmitter

$1,782.50
$1,782.50
Sale Call for a quote

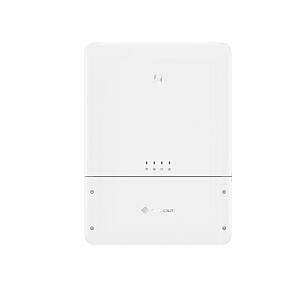

The GoodWe GW7700-MS-US30 is a premium residential grid-tied solar inverter designed specifically for North American homes. With support for up to 16A input current per string and 160% DC oversizing, this inverter maximizes solar energy production and ensures reliable long-term performance.

Engineered with built-in optimization technology, the MS-US handles shaded or complex rooftops without the need for costly module-level optimizers—helping reduce both installation time and overall system costs.

Certified to meet stringent North American safety standards, including AFCI protection and NEC 2017 rapid shutdown compliance, the GW7700-MS-US30 provides peace of mind for homeowners and installers alike. For added protection, optional DC Type II Surge Protection with event notification is available.

Whether you’re a solar installer, EPC, or homeowner, GoodWe inverters deliver the efficiency, safety, and reliability needed for a strong return on investment.

👉 Wholesale pricing available for qualified installers and retailers – Contact us to apply.

Key Features

  • Built-in optimization – no external optimizers required

  • Advanced AFCI & NEC 2017 Rapid Shutdown for maximum safety

  • 160% DC input oversizing for higher energy yield

  • Three MPPTs for greater design flexibility

  • Tigo Rapid Shutdown Transmitter included

  • 97.5% maximum efficiency

Technical Specifications

  • Max. Input Power: 12,320 W

  • Max. Input Voltage: 600 V

  • MPPT Voltage Range: 170–500 V (240V) / 150–500 V (208V)

  • Nominal Input Voltage: 380 V (240V) / 330 V (208V)

  • Max. Input Current per MPPT: 16 A

  • Max. Short Circuit Current per MPPT: 23.4 A

  • MPPTs / Strings per MPPT: 3 / 1

  • Nominal Output Power: 7,680 W (240V) / 6,650 W (208V)

  • Nominal Output Apparent Power: 7,680 VA (240V) / 6,650 VA (208V)

  • Nominal Output Voltage: 240 V / 208 V

  • Nominal AC Frequency: 60 Hz

  • Max. Output Current: 32.0 A

  • Max. Efficiency: 97.5%

  • Dimensions (W × H × D): 19.2 × 26.4 × 7.8 in

  • Weight: 55.1 lbs (25.0 kg)

View full details
