GoodWe GW5000-MS-US30 APS LAN Grid Tied Single Phase Inverter with APS Rapid Shutdown Transmitter

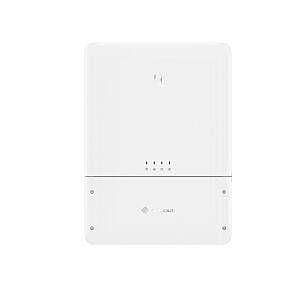

GoodWe GW5000-MS-US30 APS LAN Grid-Tied Inverter

The GoodWe MS-US is a premium residential inverter built for North American homes. It supports up to 16 A per string with 160% DC oversizing, delivering maximum energy harvest and reliable long-term performance.

With built-in optimization, it handles shaded or complex rooftops without the need for costly module-level optimizers—simplifying design and lowering system costs. Safety features include advanced AFCI protection, NEC 2017 rapid shutdown compliance, and optional DC Type II surge protection with event alerts.

Key Features

• Built-in optimization—no external optimizers required

• Integrated AFCI & NEC 2017 Rapid Shutdown

• 160% DC oversizing for higher yields

• Multiple power class options for flexible design

• Includes APS Rapid Shutdown Transmitter

Technical Specs

• Max Input Power: 8,000 W

• Max Input Voltage: 600 V

• MPPT Voltage Range: 165–500 V (240 V) / 143–500 V (208 V)

• Max Input Current: 16 A per MPPT

• Max Short Circuit Current: 23.4 A

• MPPTs/Strings: 2/1

• Nominal Output Power: 5,000 W (240 V) / 4,333 W (208 V)

• Max Efficiency: 97.5%

• Dimensions (W × H × D): 19.2 × 26.4 × 7.8 in

• Weight: 51.8 lbs (23 kg)
