When you think of ideal places for solar powered treehouses, where do you imagine? Washington State and Olympic National Park? Perhaps California and their mighty Sequoia or Redwoods? Certainly not central Maine! But that is where our customer Rob decided to build his dream treehouse. Using a small solar power system (and a lot of wood!), he is able to live off grid and (almost) totally generator-noise free.

Walking Up to the Solar Treehouse

Coming up on Rob’s property, you can see a mixing of the old and the new. The the first thing you see is his root cellar/ice house, complete with the beer taps on the outside.

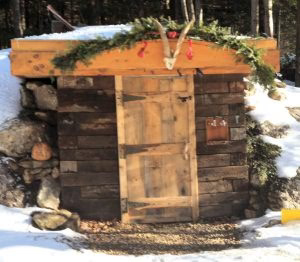

Root cellar with beer taps

Perhaps the …8220;coolest…8221; beer dispenser we've seen yet – a root cellar with beer taps.

Solar Powered Treehouse Provides Independence

At the entrance to the main property is the closet where his solar system is stored, as well as the two Canadian Solar 260 Watt Solar panels and two SolarWorld 260 Watt panels added later. The solar panels are mounted on an IronRidge rail system with tilt legs in order to adjust his array to capture more sun as the seasons change.

Back of Canadian Solar panels on the treehouse.

Looking onto the back of Canadian Solar panels on Rob's treehouse.

Rounding out his main system, Rob is using a Schneider Electric Conext XW MPPT 60 Amp Solar Charge Controller, Schneider Electric SW4024 inverter, four MK Battery 8A4D LTP Batteries wired in two parallel strings of two in series to make a 24V battery bank, and a MidNite MNDC-125 to function as his DC Load Center.

solar treehouse solar charge controller inverter batteries

Solar charge controller, power inverter (the Samlex inverter shown has since been replaced with a Schneider Electric Conext SW4024), batteries, and DC Load Center

All of this currently serves all Rob’s power needs, although he is looking to add two more panels to allow for more flexibility in managing his loads.

xantrex-link-lite-battery-monitor-altestore.com

Xantrex Link Lite battery monitor for quick status on the energy levels of Rob's off-grid solar power system.

Rob’s main building is a beautiful hardwood yurt. Inside the treehouse Rob has the Xantrex Link Lite Battery Monitor hooked up next to his DC breakers. These breakers double as switches, and the battery monitor gives him the ability to keep an eye on the solar system remotely from inside the yurt.

DC-lighting-at-solar-powered-treehouseStepping outside the yurt, you see a beautiful elevated walkway with DC lights underneath to allow for good lighting.

Coming around a bend, is the treehouse itself – a one-room structure that will function as the master bedroom with an attached composting outhouse.

Inside the mud room, you will find the Samlex Remote Control, that allows Rob to turn the inverter on and off as needed, as well as view the battery voltage from the comfort of the treehouse.

The main room itself has a stove for heating (although Rob is considering a pellet stove to provide greater heat), along with the master bed.

A Hangar with a View

View out of the hangar windows and deck of the Maine solar powered treehouse.

View out of the hangar windows and deck of the Maine solar powered treehouse.

Capping off this truly spectacular view, is the glass hangar door – able to open fully, allowing Rob to move the bed to sleep out under the stars at night, while the solar powered lights in the trees glow around him. His Schneider SW 4024 provides enough 240V power to operate the lift that raises the hangar door.

When you see the view from his crow’s nest, you have to agree – having a solar powered treehouse in Maine is pretty awesome.

View out the back deck from Rob's treehouse.

View out the back deck from Rob's treehouse.
