Victron Energy Battery Switch On/Off 275A
Victron Energy Battery Switch On/Off 275A
Regular price
$34.85
Regular price
Sale price
$34.85
Unit price
/
per

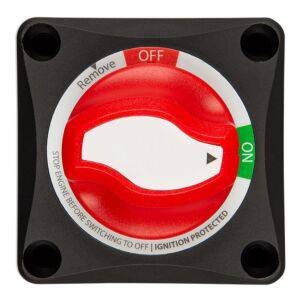

Victron Battery Switch On/Off 275A
The Battery Switch ON/OFF 275A is suitable for battery systems up to 48V. It has a unique ergonomic and aesthetic knob design. The knob is removable for isolation or safety purposes.
The Battery Switch can be either surface or panel mounted, providing flexibility during install.
The Battery Switch meets the ISO8846 Ignition Protection standard and is suitable for use in an engine room.
Features:
Max. continuous current 275A
One minute rating 455 A
Cranking rating 1200 A
Voltage rating 48 V
Terminal material Tin-plated copper
Hex nut material Tin-plated copper
Terminal diameter 3/8 inch / 9.53 mm
Recommended torque 70 lbf·inch / 8 N·m
Base material Glass fiber reinforced nylon
Weight 0.4 lb / 0.2 kg
Dimensions (hxwxd) 2.7 x 3.0 x 2.7 inch
Mounting Surface or rear panel mount
Ignition protected
The Battery Switch ON/OFF 275A is suitable for battery systems up to 48V. It has a unique ergonomic and aesthetic knob design. The knob is removable for isolation or safety purposes.
The Battery Switch can be either surface or panel mounted, providing flexibility during install.
The Battery Switch meets the ISO8846 Ignition Protection standard and is suitable for use in an engine room.
Features:
Max. continuous current 275A
One minute rating 455 A
Cranking rating 1200 A
Voltage rating 48 V
Terminal material Tin-plated copper
Hex nut material Tin-plated copper
Terminal diameter 3/8 inch / 9.53 mm
Recommended torque 70 lbf·inch / 8 N·m
Base material Glass fiber reinforced nylon
Weight 0.4 lb / 0.2 kg
Dimensions (hxwxd) 2.7 x 3.0 x 2.7 inch
Mounting Surface or rear panel mount
Ignition protected
