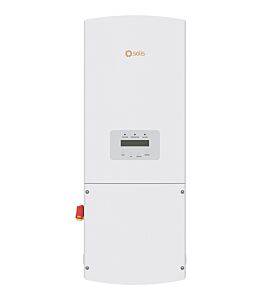

Solis Solar Inverter Solis-1P3.6K-4G-US-RSS Single Phase Dual MPPT Residential Inverter
Solis Solar Inverter Solis-1P3.6K-4G-US-RSS Single Phase Dual MPPT Residential Inverter
Regular price
$1,348.00
Regular price
Sale price
$1,348.00
Unit price
/
per
Solis-1P3.6K-4G-US-RSS Single Phase Inverter
We offer a wholesale program for qualifying installers and retailers. If you would like to apply, please see our partner program page for details.
Solis 3.6-5KW US plus version single phase string inverters have dual MPPTs which can be utilized in complex design environments. The maximum input current per string is up to 14A, which is compatible with new high-power and bifacial PV modules. A built-in (optional) ANSI C12.20, 0.5 Accuracy Class revenue grade meter will guarantee accurate data recording.
Leading Features:
String current up to 14A
Support module level monitoring
Max. efficiency 97.7% (CEC efficiency 97.1%)
CA Rule 21 compliant and UL 1741 SB Certified
Sunspec protocol with option cellular and WiFi
AFCI protection, proactively reduces fire risk
Integrated module level rapid shutdown transmitter
10 years standard warranty with extension options
Optional Built-in Revenue Grade Meter, ANSI C12.20-2010 compliance
Fast and dynamic MPPTs and industry-leading DC voltage range
Technical Specifications:
Max. input voltage: 600V
Start-up voltage: 120V
MPPT number: 2
Max. input strings number: 2
Rated output power: 3.6 kW
Rated grid frequency: 60 Hz
Max. output current for 208V grid: 17.3 A
Max. output current for 240V grid: 15.0 A
Max. efficiency: 97.3%
Dimensions: 13.9in x 31.9in x 6.5in
Weight: 33.1 lbs (15 kgs)
