Sol-Ark

Sol Ark TX 15K-A PLC RSS Transmitter system

Sol Ark TX 15K-A PLC RSS Transmitter system

Regular price $440.00
Regular price Sale price $440.00
Sale Sold out
Sol Ark PLC RSS Transmitter System

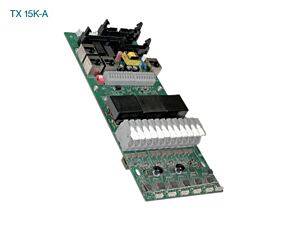

Sol-Ark TX 15K-A transmitters are part of the Rapid Shutdown Line, they are located inside Sol-Ark 15K-2P-N inverters.
Provides the permission-to-operate powerline communication (PLC) signal when paired with Sol-Ark O900-80V or any other SunSpec RSD Certified module-level power electronic devices to provide rapid shutdown system compliance as per 2017 & 2020 NEC 690.12 specifications.
The TX 15K-A Transmitters can be installed in existing Sol-Ark 15K previously commissioned.
No need to install cores for Power Line Communication (PLC), TX 15K-A has the transmitter built into the MPPT board of the Sol-Ark 15K.
Features:
Power Supply: On board-48VDC(includes power cable)
Dimensions (W x L): 110 mm x 244mm
Max Number of Strings: 6
Number of MPPTs: 3
Max Power Consumption: 12W
